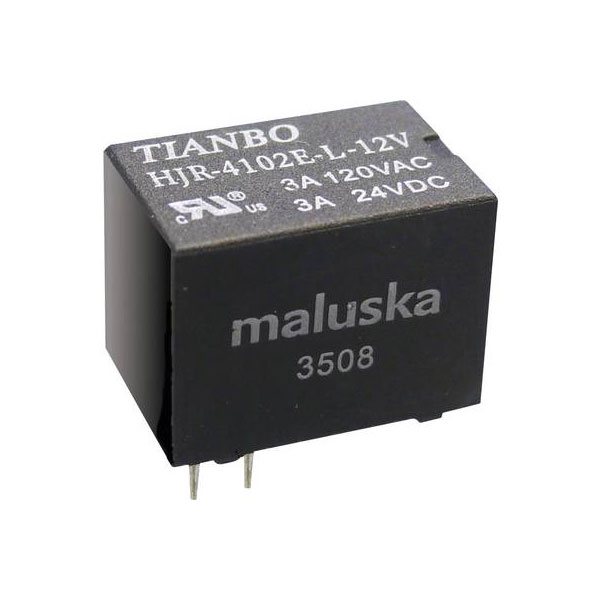

Tianbo Electronics HJR-4102-L-12VDC-S-Z PCB Relay 12V DC 5A 1CO 1piece

Tianbo Electronics
Order Code:

10-8124

Brand: Tianbo Electronics MPN: HJR-4102-L-12VDC-S-Z EAN-13: 2050001760661
Qty Unit Price (Ex VAT)
10+ £0.656
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 12 weeks

Tianbo Electronics manufactures the HJR-4102-L-12VDC-S-Z PCB relay, designed for 12 V DC operation with a 5 A current rating. This miniature relay features a single change-over contact system, suitable for printed circuit board mounting. Typical applications include switching and control tasks in consumer electronics and automation systems.
Coil Voltage 12V DC
Contact Configuration 1CO (SPDT)
Switching Current 5A
Coil Resistance 720Ω
Connection Solder pins
Contact Material AgNi+Au
Control Mode monostable, 1 coil
Dimensions (L x W x H) 15.7 x 10.4 x 11.7 mm
Height 11.7mm
Length 15.7mm
Max. pick-up Voltage 15.6V DC
Max. temperature +85°C
Min. pick-up Voltage 9V DC
Minimum Temperature -30°C
Mounting Type PCB
Type PCB relay
Width 10.4mm
