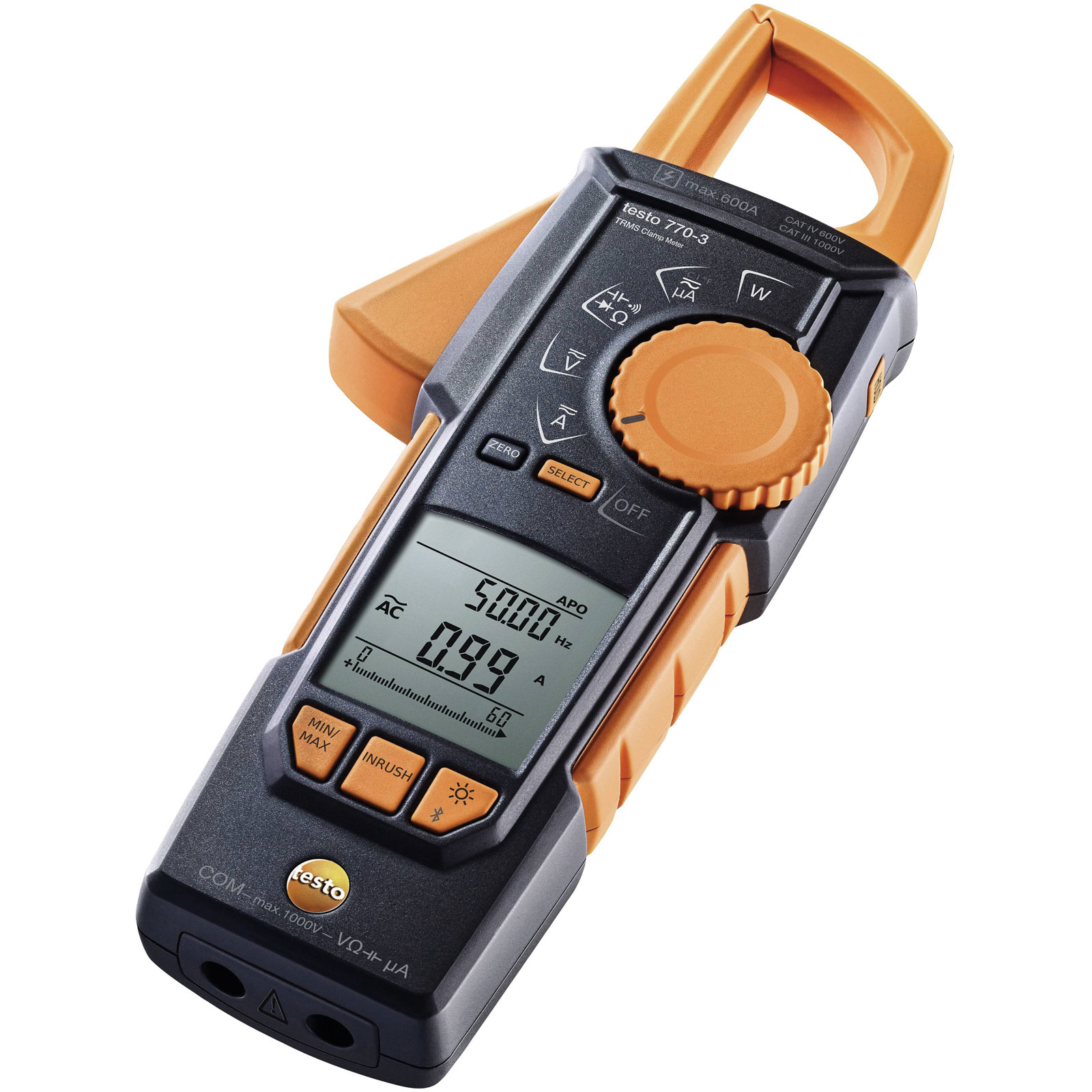

Testo 0590 7703 Clamp meter Digital CAT III 1000V, CAT IV 600V, 6000 counts

Testo
Order Code:

17-4214

Brand: Testo MPN: 0590 7703 02 EAN-13: 4029547026690
Qty Unit Price (Ex VAT)
1+ £210.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
9 available to back orderBack-order availability date - 10/01/2026

The Testo 0590 7703 Clamp Meter is a versatile digital multimeter designed for precision and safety, capable of measuring up to CAT III 1000V and CAT IV 600V. Featuring 6000 counts and functioning as a voltmeter, ammeter, and frequency tester, it provides reliable voltage and current readings. Ideal for use in industrial environments, this clamp meter ensures accurate diagnostics and troubleshooting for electricians and technicians.
Type Clamp meter
Display Count 6000
A AC reading range (min.) 0.1A
A DC reading range (max.) 600A
AC resistance 11MΩ
Amperage reading range AC (max.) 600A
Amperage reading range DC (min.) 0.1A
Calibrated to Manufacturer's standards (no certificate)
Current reading AC/DC
Dc Resistance 11MΩ
Dim (L x W x H) 249 x 96 x 43 mm
Display Digital
Frequency reading range 0.01 Hz - 9999kHz
Height 43mm
Length 249mm
Measurement type (details) True RMS
Misc Attribute 770-3
Power supply (details) 3 micro batteries (AAA)
Reading range - capacity 2 nF - 60mF
Reading range - resistance 0.01 MΩ - 60MΩ
Temperature reading range (max.) +500°C
Temperature reading range (min.) -20°C
V AC reading range (max.) 600V
V AC reading range (min.) 1mV
Voltage DC reading range (max.) 600V
Voltage metering AC/DC
Voltage reading range DC (min.) 1V
Width 96mm
