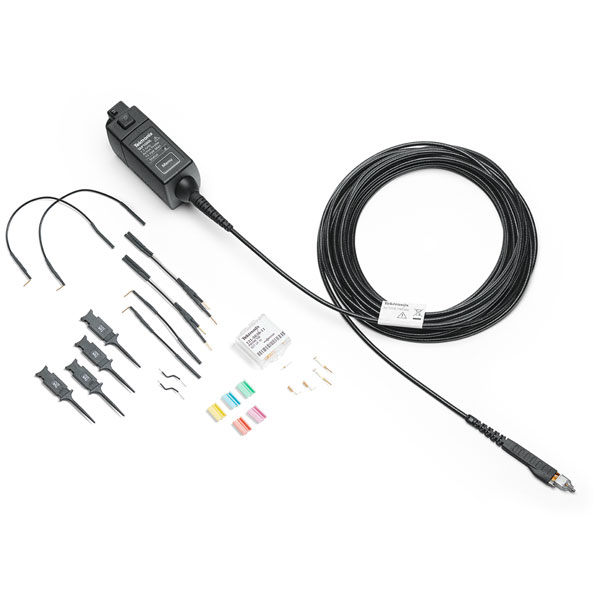

Tektronix TAP1500L Active Probe

Tektronix TAP1500L Active Probe - Single-ended Active FET Probe which provides excellent high-speed electrical and mechanical performance required for today's digital system designs.

1.5 GHz active probes for TekVPI™ probe interface Specifically designed for use and direct connection to oscilloscopes with the TekVPI™ probe interface, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems: Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance Versatile DUT connectivity for attaching to small SMDs Preserves instrument bandwidth at the probe tip for ≤1 GHz oscilloscopes.

• Outstanding electrical performance ≥1.5 GHz, probe bandwidth< 267, ps rise time
• ≤1 pF input capacitance. 1 MΩ input resistance
• -8 V to +8 V input dynamic range -10 V to +10 VDC input offset range
• Versatile mechanical performance
• Small compact probe head for probing small geometry circuit elements
• DUT attachment accessories enable connection to SMDs as small as 0.5 mm pitch
• Robust design for reliability
• Easy to use
• Connects directly to oscilloscopes with the TekVPI™ probe interface
• Provides automatic units scaling and readout on the oscilloscope display
• Easy access to oscilloscope probe menu display for probe status/diagnostic information, and to control probe
• DC offset
• Remote GPIB/USB probe control through the oscilloscope
• Applications High-speed Digital Systems
• Design Component Design and Characterization Manufacturing Engineering and Test Educational Research Signals with Voltage Swings up to 16 V
