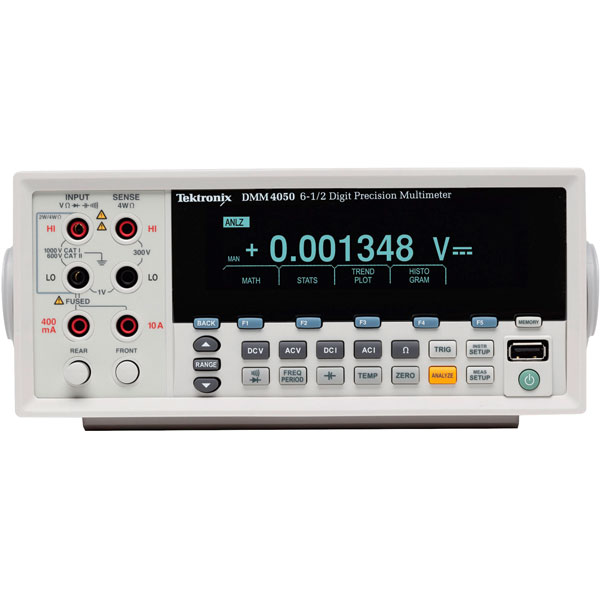

The Tektronix DMM4050 is a Digital Multimeter that has been designed for bench, field service, and system applications.
This meter has a unique dual display, enabling you to measure two different parameters of the same signal from one test connection. To reveal signal quality issues like drift, intermittent transients, and stability, you can view the data as a real-time trend plot or a histogram with the graphical display mode, or you can use measurement statistics to track how signal parameters are changing over time.
Typical multimeter measurements of volts, ohms, and amps, are made with a basic VDC accuracy of up to 0.0024%, and a resolution of 100pA and 10µΩ, ensures you have the performance you need for today's demanding designs. You can also use the DMM4050 for frequency and period measurements, and perform continuity and diode tests.
For additional flexibility, the DMM4050 offers temperature and capacitance measurements. This allows you to replace your temperature meter, capacitance meter, counter, continuity tester, and traditional DMM with one versatile instrument, saving bench space and cost.
The DMM4050 is a professional piece of test equipment, designed to make your work easier.
What's in the Box?
Tektronix DMM4050
TL710 Test Leads
Line Cord
Calibration Certificate
Calibration Data Report
Safety and Installation Instructions including Warranty Statement
CD-ROM with User Manual
RS-232 to USB Adaptor Cable
National Instruments
LabVIEW SignalExpress™ Tektronix Edition Limited Edition Software
- 6½ Digit Resolution
- Basic VDC Accuracy of up to 0.0024%
- 100mV to 1000V Voltage Range, with up to 100nV Resolution
- 100μA to 10A Current Range, with up to 100pA Resolution
- 10Ω to 1GΩ Range, with up to 10μΩ Resolution
- CAT I 1000V, CAT II 600V
- Volts, Ohms, and Amps Measurements
- True RMS (AC, AC + DC) Measurements
- Diode and Continuity Testing
- Frequency and Period Measurements
- 2x 4 Ohms 4-wire Measurement Technique
- TrendPlot™ Paperless Data Recorder Mode
- Measurement Statistics
- Histogram Mode
- Front and Rear 2x 4 Measurement Inputs
- USB Host Port on Front Panel for Easy Storage of Measurement Data and Instrument Settings
- RS-232, LAN, and GPIB Ports on Rear Panel for Quick PC Connectivity
- Includes USB to RS-232 Interface Adaptor Cable
- Includes National Instrument's LabVIEW SignalExpress™ TE Limited
- Temperature and Capacitance Measurements
- Manufacturer's part: Tektronix DMM4050
| Display |
VFD 6½ digit |
| Interfaces |
1 |
