TE Connectivity UP01DTANLA04 Switch Snap Action 0.1A 125VAC SPDT PCB Mount

Inc VAT

Qty	Unit Price (Ex VAT)
200+	£1.03

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 200

Despatched within 5 working days - 1,600 in stock

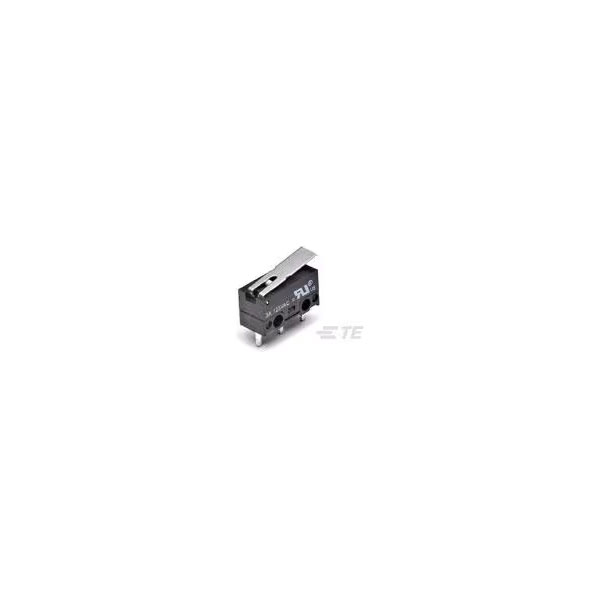

The TE Connectivity UP01DTANLA04 is a snap action switch designed for PCB mounting.

It features a single pole double throw (SPDT) configuration with a current rating of 0.1A at 125VAC.

This switch is ideal for applications requiring precise and reliable actuation.

It is commonly used in consumer electronics and industrial control systems.

Type	Switch
Contact Configuration	SPDT
Switch Function	On-Mom
Current Rating (Amps)	0.1A
Voltage Rating - AC	125V
Actuator Type	Short Lever
Actuator Material	Nylon
Contact Current Rating	100mA
Contact Material	Brass
Contact Plating	Gold
Contact Type	1 change-over
Current Rating	100mA
DC Rated Voltage	30v
Depth	5.8mm
Electrical Life	1000000Cycles
Height	6.7mm
Length	13.5mm
Max Current Rating	100mA
Max Voltage Rating (DC)	30v
Maximum Operating Temperature	80°C
Mechanical Life	1000000Cycles
Minimum Operating Temperature	-40°C
Mount	Through Hole
Operating Force	0.49n
Operating Position	0.311inch
Orientation	Straight
Package Quantity	5000
Packaging	Tray
RoHS Compliant	Yes
Series	UP01
Termination	PC Pin
Throw Configuration	SPDT
Voltage Rating (AC)	125v
