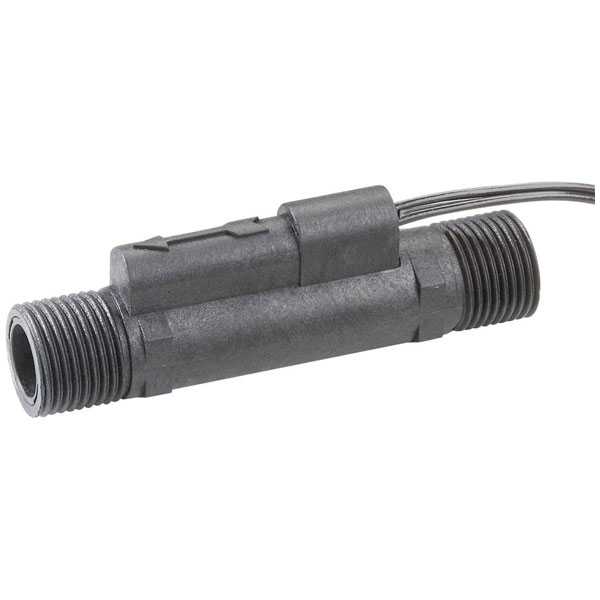

TE Connectivity FCS-01 Flow Switch SPST Vertical/Horizontal Leak Detection

TE Connectivity's FCS-01 is a flow switch with SPST functionality, suitable for vertical and horizontal installation. It serves as a reliable component for monitoring liquid flow and liquid level applications. Often used in systems requiring fluid flow detection, its compact design of 17x25mm is ideal for integration in various environments.

(Ø)	17mm
Cable Length	0.50m
Connection	16.66 mm (3/8" BSP)
Connector	Cable, open end
Contact Type	1 maker
Dim	(Ø x H) 17 mm x 25 mm
Enclosure material	Polyphenylene ether (PPE)
Height	25mm
Length	75mm
Material (details)	Noryl housing
Max. ambient temperature	+85°C
Max. operating pressure	10bar
Military Spec	False
Min. ambient temperature	-30°C
Misc Attribute 1	Flow Switch
REACH	unknown
Switching Capacity	1 A/100 V/DC / 250V AC
Switching current (max.)	1A
Type	Flow sensor
