TE Connectivity DT06-3S-CE06 DT Series Connector Housing Contacts Fuse Wedge

TE Connectivity
Standard range
Order Code:

13-0798

Brand: TE Connectivity MPN: DT 06-3S-CE06 EAN-13: 2050001264015
Qty Unit Price (Ex VAT)
1+ £1.21
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
79 in stock, despatched in 4 working days

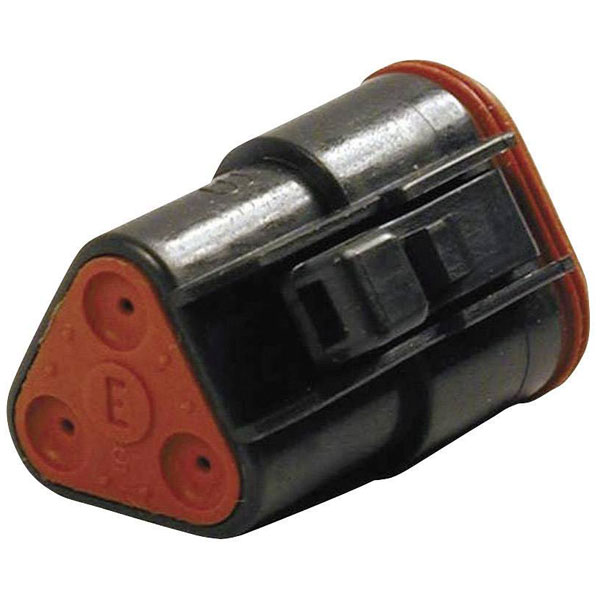

TE Connectivity manufactures the DT 06-3S-CE06, a robust bullet connector with three positions. It is designed for reliable performance in harsh environments, suitable for automotive and industrial applications. The connector provides secure, moisture-resistant connections, making it ideal for demanding conditions.
AWG 20 - 14
Cable Ø (max.) 3.68mm
Cable Ø range 1.35 - 3.68 mm
Cable Ø up to 1.35mm
Case material Thermoplastic material
Connection Crimp
Connection angle 180°
Connector type Socket, straight
Cross-section range 2 mm² (max)
Factory colour Black
Manufacturer part # DT 06-3S-CE06
max. cross section 2mm²
Misc Attribute DT 06-3S-CE06
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 1500V AC
Number of pins 3
RoHS-compliant Yes
Series DT
Total no. of pins 3
Type Bullet connector
