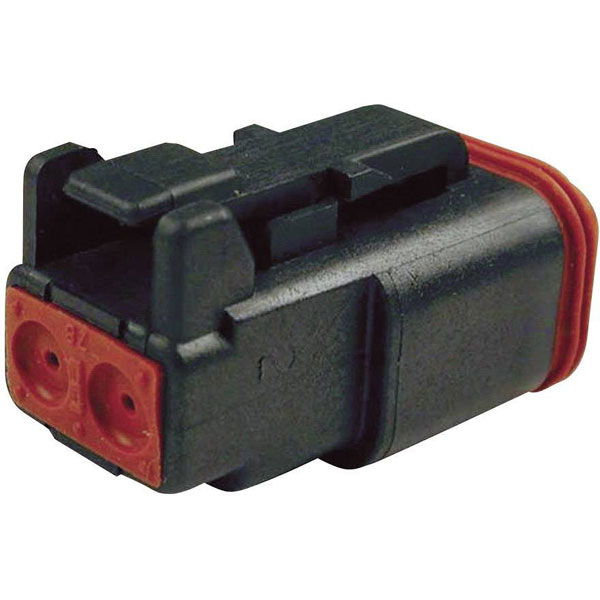

TE Connectivity DT06-2S-CE06 Connector: Housing, Contacts, Fuse Wedge

TE Connectivity manufactures the DT 06-2S-CE06, a robust bullet connector. It is designed for secure and reliable electrical connections, ideal for automotive and industrial applications. The connector features durable construction that withstands harsh environments.

Type	Socket, straight
Number of Contacts	2
Number of Rows	1
Cable Ø (max.)	3.68mm
Cable Ø range	1.35 - 3.68mm
Cable Ø up to	1.35mm
Case Material	Thermoplastic material
Colour	Black
Connection	Crimp
Connection Angle	180°
Cross Section	2 mm² (max)
Current Rating	13A
max. cross section	2mm²
Nominal Voltage	1500V AC
Series	DT
Wire Gauge (AWG)	20 - 14
