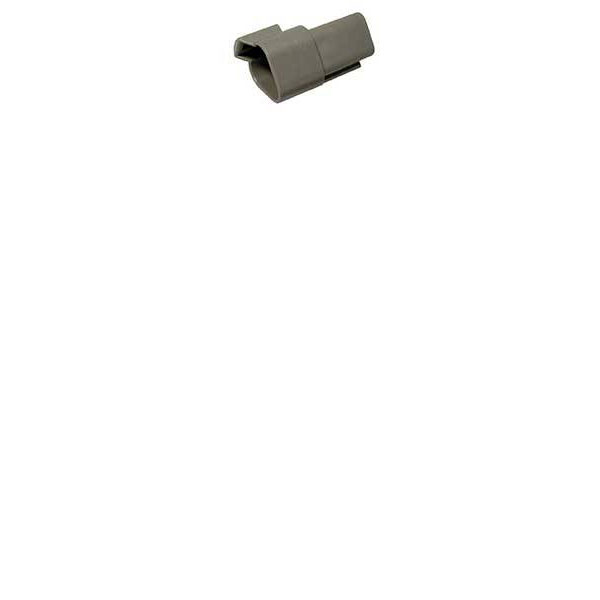

TE Connectivity DT04-3P DT Series Bullet Connector Plug 3-Pin Straight

TE Connectivity
Order Code:

07-5222

Brand: TE Connectivity MPN: DT04-3P EAN-13: 2050003846530
Qty Unit Price (Ex VAT)
5+ £0.889
25+ £0.789
100+ £0.713
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
340 in stock, despatched in 4 working days

The TE Connectivity DT04-3P bullet connector is a straight, three-pin plug from the DT series of round connectors. It is commonly used in automotive and industrial applications for secure and reliable electrical connections. Durable and moisture-resistant, it is ideal for harsh environments where robust connector performance is essential.
Type Plug, straight
Number of Contacts 3
Gender Receptacle
Number of Rows 2
Cable Ø (max.) 3.68mm
Cable Ø range 1.35 - 3.68mm
Cable Ø up to 1.35mm
Case Material Thermoplastic material
Colour Grey
Connection Crimp
Connection Angle 180°
Connector System Wire-to-Wire
Contact Type Male Pin
Cross Section 2 mm² (max)
Current Rating 13A
ELV Compliant
Flammability Rating UL94 V-0
Height 24.71mm
Housing Color Grey
Hybrid Connector No
IP Rating IP68
Lead Free Lead Free
Length 43.13mm
Max Operating Temperature 125°C
max. cross section 2mm²
Max. temperature +80°C
Min Operating Temperature -55°C
Min. temperature -40°C
Mount Free Hanging
Nominal Voltage 250V AC
Operating Supply Voltage 250v
Packaging Bulk
Pitch 8.7mm
Polarized Yes
Reach SVHC Compliant Unknown
RoHS Compliant Yes
Sealable Yes (With)
Series DT
Serviceable Yes
Strain Relief Add By Accessory
Termination Crimp
Voltage Rating 250v
Width 0.832inch
Wire Gauge (AWG) 20 - 14
