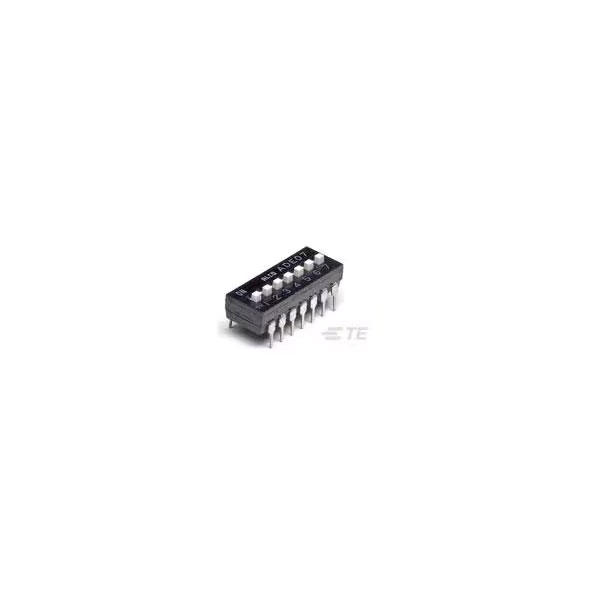

TE Connectivity ADE0704 DIP Switches 7 Positions External Actuation

TE Connectivity
Order Code:

15-6190

Brand: TE Connectivity MPN: ADE0704
Qty Unit Price (Ex VAT)
120+ £1.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 120
Available to back orderBack-order availability date - 21/04/2026

The TE Connectivity ADE0704 dip switches feature seven positions with external actuation.

They are designed for easy selection and configuration, often used in circuit board settings.

These switches are known for their reliable performance and compact design.

Typical applications include telecommunications and industrial equipment.


Type DIP switch
Number of Positions 7
Actuator Length 1mm
Actuator Material Polyamide
Contact Material Copper Alloy
Contact Plating Nickel, Gold
Electrical Life 1000Cycles
Max Operating Temperature 85°C
Max Voltage Rating (DC) 24v
Min Operating Temperature -30°C
Mount Through Hole
Number of Circuits 7
Orientation Straight
Packaging Rail/Tube
RoHS Compliant Yes
Terminal Pitch 2.54mm
Termination PC Pins
Throw Configuration SPST
