TE Connectivity 966067-9 Ferrule 1 Mm² Red Partially Insulated 500 Pcs

Discontinued

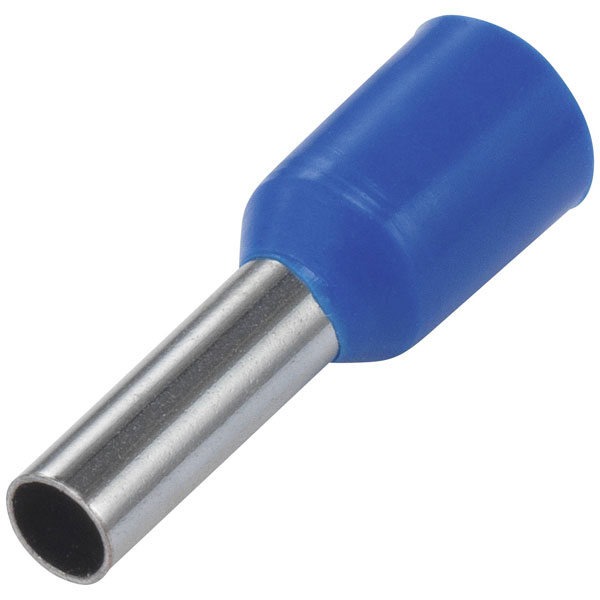

TE Connectivity 966067-9 is a wire end ferrule designed to terminate stranded wires.

It ensures reliable electrical contact and prevents wire fraying.

The part is typically used in industrial equipment and control systems.

Its standard design fits a variety of wire gauges, enhancing connectivity and safety.

Insulation	Partially Insulated
Colour	Red
Pin Length	.312mm
Maximum Wire Size mm2	1mm²
Number of Entries	1
Barrel Type	Closed
Body Material	Copper
Color	Red
Compatible Insulation Diameter Range	.114
Contact Material	Cathode copper, tin plated
Contact Plating	Tin
Cross-section range	1 mm² x 8 mm
Depth	3.5mm
ELV	Compliant
Heavy Duty	No
Inside Diameter	2.7mm
Insulation Material	PP
Lead Free	Not Applicable
Lead Length	8mm
Length	14mm
Material	PE, Copper, Tin, Polypropylene
Maximum Wire Size AWG	18
Orientation	Straight
Package Quantity	500
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	500
Pin Diameter	1.4mm
Plating	Copper, PP
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No
Series	Buchanan
Sleeve length	8mm
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Ferrule
Type	Ferrule
Wire Insulation Support	Without
