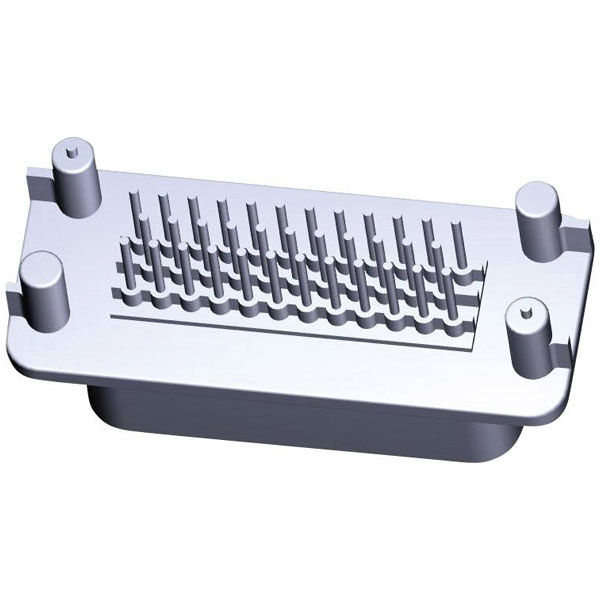

TE Connectivity manufactures the AMPSEAL precision built-in pin strip, part number 776231-1, which features a total of 35 pins. It is designed for robust electrical connections, typically used in automotive and heavy-duty applications. This component ensures reliable performance in harsh environments.
| Type |
Plug, straight |
| Number of Contacts |
35 |
| Gender |
Male |
| Number of Rows |
3 |
| Board contact surface |
Tin plated |
| Case Material |
Thermoplastic material |
| Circuit Application |
Power |
| Code |
Color |
| Color |
Black |
| Colour |
Black |
| Connection |
Print |
| Connector contact surface |
Tin plated |
| Connector System |
automotive |
| Contact Finish - Mating |
TIN |
| Contact Material |
Copper alloy |
| Contact Plating |
Tin |
| Contact Shape |
Circular |
| Contact Type |
Male Pin |
| Current Rating |
8A |
| Depth |
32.1mm |
| Dimensions |
(L x W x H) 32.1 x 76.9 x 34.25 mm |
| Flammability Rating |
UL94 V-0 |
| Height |
34.25mm |
| Industrial packaging |
No |
| Insulation Color |
Black |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP6K9K |
| Length |
32.1mm |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-40°C |
| Min. temperature |
-40°C |
| Misc Attribute |
AMPSEAL |
| Mount |
Through Hole, Panel |
| Nominal Voltage |
250V AC |
| Number of Ports |
1 |
| Number of Positions |
35 |
| Number of Signal Positions |
35 |
| Operating Supply Voltage |
250v |
| Orientation |
Straight |
| Package Quantity |
1 |
| Packaging |
Bulk |
| PCB Mount Alignment |
Yes (With) |
| PCB Mount Retention |
Without |
| PCB Thickness |
0.062inch |
| Pin shape |
Circular |
| Pitch |
0.157inch |
| Primary Type |
Rectangular |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
0.157inch |
| Sealable |
Yes (With) |
| Series |
AMPSEAL |
| Shielding |
Unshielded |
| Tab Thickness |
1.3mm |
| Termination |
Solder |
| Voltage Rating |
250v |
| Voltage Rating (AC) |
250v |
| Width |
76.9mm |
