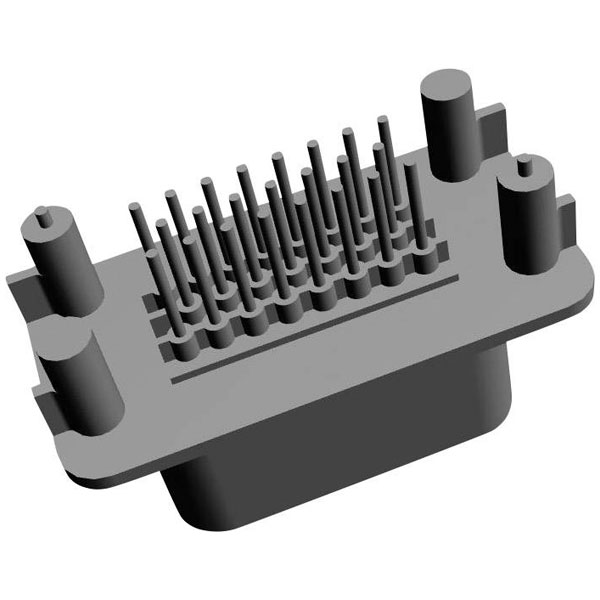

TE Connectivity's 776200-1 is a vertical shrouded male connector assembly featuring 23 positions.
It is designed for secure and reliable electrical connections with its robust housing and precise contact alignment.
This connector is ideal for use in environments requiring durable and consistent performance, such as industrial machinery and communication equipment.
Its black colour and compact design facilitate integration into various electronic applications.
| Type |
Plug, straight |
| Number of Contacts |
23 |
| Gender |
Male |
| Number of Rows |
3 |
| Board contact surface |
Tin plated |
| Case Material |
Thermoplastic material |
| Circuit Application |
Power |
| Code |
Color |
| Color |
Black |
| Colour |
Black |
| Connection |
Print |
| Connector contact surface |
Tin plated |
| Connector System |
automotive |
| Contact Finish - Mating |
TIN |
| Contact Material |
Copper alloy |
| Contact Plating |
Tin |
| Contact Shape |
Circular |
| Contact Type |
Male Pin |
| Current Rating |
8A |
| Depth |
32.1mm |
| Dimensions |
(L x W x H) 32.1 x 60.8 x 34.25 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Height |
34.25mm |
| Industrial packaging |
No |
| Insulation Color |
Black |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP6K9K |
| Lead Free |
Lead Free |
| Length |
32.1mm |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-40°C |
| Min. temperature |
-40°C |
| Misc Attribute |
AMPSEAL |
| Mount |
Through Hole, Panel |
| Nominal Voltage |
250V AC |
| Number of Positions |
23 |
| Number of Signal Positions |
23 |
| Orientation |
Straight |
| Package Quantity |
1 |
| Packaging |
Bulk |
| PCB Mount Alignment |
Yes (With) |
| PCB Mount Retention |
Without |
| PCB Thickness |
0.062inch |
| Pin shape |
Circular |
| Pitch |
0.157inch |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
AMPSEAL |
| Shielding |
Unshielded |
| Tab Thickness |
1.3mm |
| Termination |
Solder |
| Voltage Rating (AC) |
250v |
| Width |
60.8mm |
