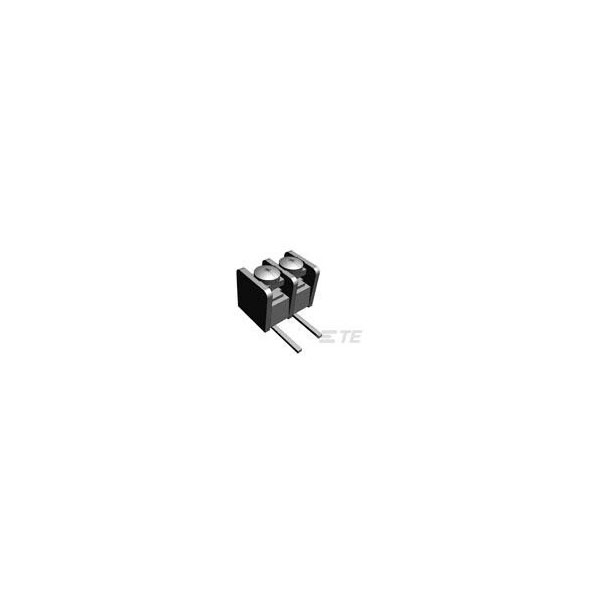

TE Connectivity 7-1437667-1 Barrier Terminal Block 20A 3mm2 1 Row

Inc VAT

Qty	Unit Price (Ex VAT)
208+	£0.938

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 208

Available to back orderBack-order availability date - 10/09/2026

The TE Connectivity 7-1437667-1 is a barrier terminal block designed for electrical connections.

It handles up to 20 amps and accommodates wires up to 3mm² in size.

The single-row configuration makes it suitable for compact installations.

Typical applications include electrical control panels and distribution boards.

Type	Barrier Strips
Number of Circuits	2
Pitch	0.325inch
Current Rating	20A
Colour	Black
Contact Material	Steel
Contact Plating	Tin
Depth	16.25mm
ELV	Compliant
Flammability Rating	UL94 V-0
Housing Colour	Black
Insulation Material	Thermoplastic
Length	18.16mm
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Number of Wire Entries	2
Orientation	Right Angle
Package Quantity	2080
Packaging	Bulk
Radiation Hardening	No
RoHS Compliant	Yes
Series	4DB, Buchanan
Terminal Finish	Zinc
Terminal Material	Steel
Termination	Solder
Voltage Rating	150v
Wire Gauge	22AWG
Wire Gauge (Min)	12AWG
