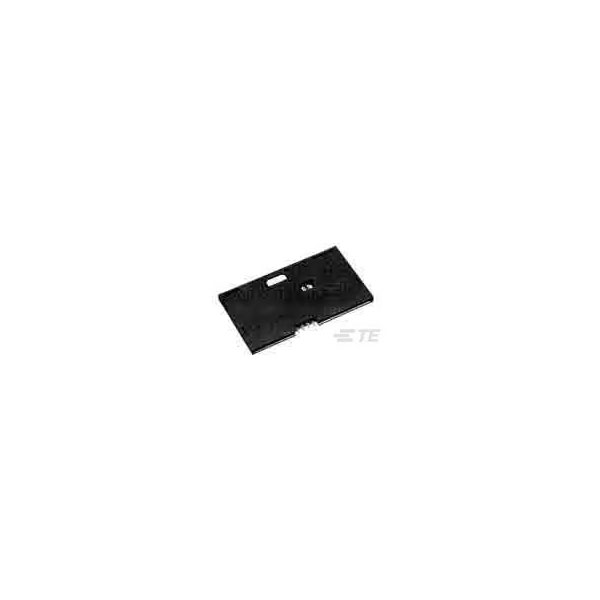

The TE Connectivity 5145300-3 is a memory card connector designed for secure and efficient data transmission.
It features an 8-position surface mount technology with a female interface and a protective cover.
Main attributes include compact design and robust construction for reliable usage.
It is typically used in consumer electronics, such as cameras and mobile devices, requiring microSD card connections.
| Type |
Smart Card Connectors |
| Number of Positions |
8 |
| Centerline (Pitch) |
2.54mm |
| Circuit Application |
Signal |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating |
200mA |
| Contact Current Rating (Max) |
0.20000000000000001 |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
5 |
| Contact Plating |
Gold, Tin |
| Contact Underplating Material |
Nickel |
| Durability |
50000Cycles |
| Durability rating |
50000 |
| ELV |
Compliant |
| Housing Color |
Black |
| Housing Material |
High Temperature Thermoplastic |
| Mating Alignment |
Without |
| Max Operating Temperature |
194°C |
| Min Operating Temperature |
-40°C |
| Mount |
Surface Mount |
| Number of Contacts |
8 |
| Number of Rows |
2 |
| Number of Signal Positions |
8 |
| Operating Temperature Range |
-40 – 194 |
| Orientation |
Straight |
| Package Quantity |
336 |
| Packaging |
Carton |
| Packaging Method |
Carton |
| Packaging Quantity |
336 |
| PCB Contact Termination Area Plating Material |
Tin |
| Pitch |
2.54 |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Strain Relief |
No (Without) |
| Termination |
IDC |
| Termination Method to PCB |
Surface Mount |
