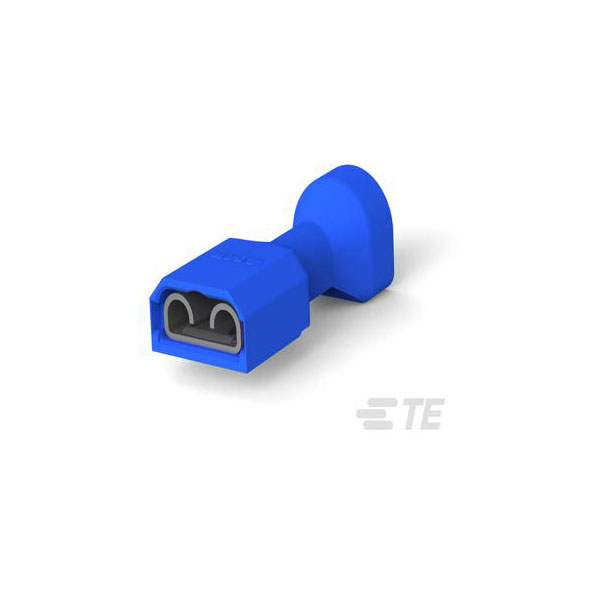

The TE Connectivity 3-520140-2 is an Ultra-Fast connector designed for female unshrouded connections.
It supports 16-14 AWG wire sizes and ensures reliable electrical performance.
This connector is typically used in automotive and industrial applications where secure and quick connections are essential.
Its robust design guarantees durability and long-term usage in harsh environments.
| Insulation |
Insulated |
| Colour |
Blue, Clear |
| Gender |
Female |
| Barrel Type |
Closed |
| Body Material |
Brass |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.26 |
| Compatible With Agency/Standards Products |
UL |
| Contact Base Material |
Brass |
| Contact Material |
Bronze |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| Depth |
10.38mm |
| Flammability Rating |
UL94 V-2 |
| Insulated Wire Support |
Yes |
| Insulation Colour |
Blue |
| Insulation Diameter |
0.26inch |
| Insulation Material |
Nylon |
| Insulation Option |
Fully Insulated |
| Length |
0.935inch |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.25 |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Orientation |
Straight |
| Package Quantity |
2000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Strip/Reel |
| Packaging Quantity |
2000 |
| Plating |
Tin |
| Product Length |
.935 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Ultra-Fast |
| Size |
0.032inch |
| Terminal Material |
Brass |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| UL Flammability Rating |
UL 94V-2 |
| Wire Gauge (Max) |
14AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire Size |
16 – 14 |
| Wire/Cable Diameter |
6.6mm |
| Wire/Cable Type |
Discrete |
