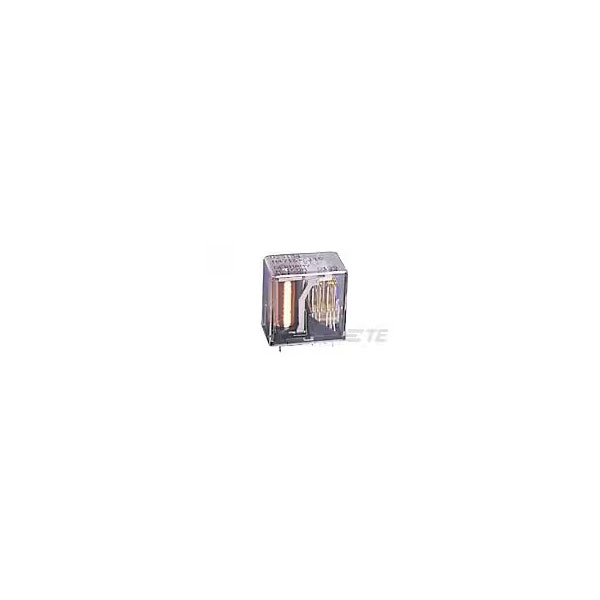

TE Connectivity 3-1393809-2 Low Signal Relay PCB V23154D 726B110

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£104.42

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 2

Available to back orderBack-order availability date - 09/08/2026

TE Connectivity's Low Signal Relay, part number 3-1393809-2, is a compact signal relay versatile for various low power applications.

It operates on a PCB with a maximum contact current of 2 amps.

The relay is typically used in telecommunications equipment and industrial control systems.

Its durable design ensures reliable performance in sensitive electronic circuits.

Type	Relay
Switching Current	2A
Coil Resistance	3.2kRO
Length	30 mm
Width	19 mm
Height	30mm
Actuating System	AC/DC
Application(s)	SIGNAL
Coil Current	15mA
Coil Power	667mW
Coil Type	Non-Latching
Coil Voltage (DC)	48v
Contact Current Rating	1.25a
Contact Plating	Gold
Contact Type	Single contacts
Contact Voltage Rating (DC)	150v
Current Rating	2a
Depth	30mm
ELV	Compliant
Max Current Rating	2a
Max Voltage Rating (AC)	125v
Max Voltage Rating (DC)	150v
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Mount	Socketable, PCB, Plug-In
Operate Time	7.5ms
Packaging	Box
Power Consumption	800mW
Ratings	IP30
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	V23154, AXICOM
Termination	PCB
Throw Configuration	4PDT
Weight	25g
