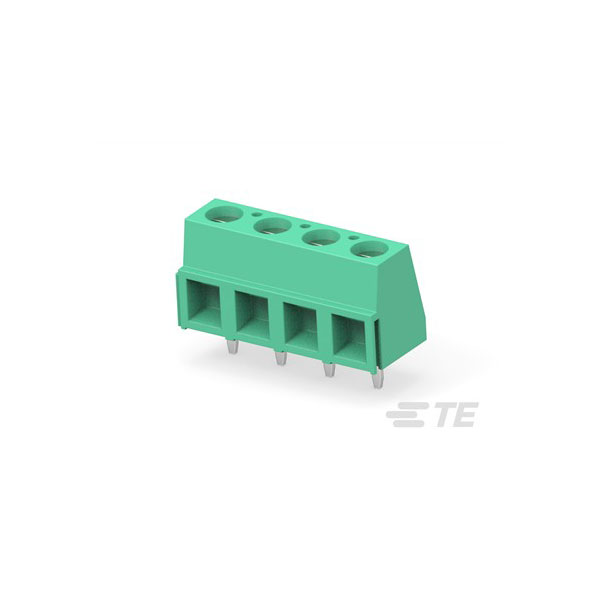

TE Connectivity's 282837-4 TERMI-BLOK is a PCB mount connector featuring four positions.
This female, unshrouded component is designed for secure and reliable electrical connections.
It is commonly used in industrial and commercial electronic applications.
The robust design supports efficient installation and maintenance in circuit assemblies.
| Pitch |
5.08mm |
| No. of Ways |
4 |
| Mounting Type |
Wire-to-Board |
| Mounting Direction |
Vertical |
| Approvals |
UL |
| Circuit Application |
Power & Signal |
| Closed End |
No (Without) |
| Color |
Green |
| Colour |
Green |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
13.5 |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Plating |
Tin |
| Current |
13.5a |
| Current Rating |
13.5a |
| Depth |
8.2mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Housing Color |
Green |
| Housing Material |
PA 66 |
| Interlock |
Yes (With) |
| Lead Free |
Lead Free |
| Length |
20.92mm |
| Material |
Nylon |
| Max Current Rating |
13.5a |
| Max Operating Temperature |
110°C |
| Max Supply Voltage (AC) |
250v |
| Max Voltage Rating (AC) |
250v |
| Min Operating Temperature |
-40°C |
| Mount |
Through Hole |
| Number of Circuits |
4 |
| Number of Contacts |
4 |
| Number of Levels |
1 |
| Number of Poles |
4 |
| Number of Positions |
4 |
| Number of Positions Per Level |
4 |
| Number of Rows |
1 |
| Operating Supply Voltage |
300v |
| Operating Temperature Range |
-40 – 230 |
| Operating Voltage |
300 |
| Orientation |
Straight |
| Package Quantity |
150 |
| Packaging |
Carton |
| Plating |
Brass |
| Product Orientation |
Vertical |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Screw Flange |
No (Without) |
| Screwless Terminal Block |
No (Without) |
| Series |
Buchanan |
| Side Stackable |
Yes (With) |
| Tail Length |
3.5mm |
| Termination |
Screw |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Method to Wire & Cable |
Clamp & Screw |
| Termination Post & Tail Length |
.138 |
| Thread Size |
M3 |
| Type |
PCB Terminal Blocks |
| Voltage |
300v |
| Voltage Rating |
250v |
| Width |
8.2mm |
| Wire Gauge (Max) |
28AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Size |
30 – 16 |
| Wire/Cable Gauge |
30AWG |
