TE Connectivity 280050-2 FASTON Flag Female Unshrouded 16-20 AWG

Order Code:

14-5543

Brand: TE Connectivity MPN: 280050-2
Qty Unit Price (Ex VAT)
4000+ £0.098
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 4000
Available to back orderBack order, lead time 14 days

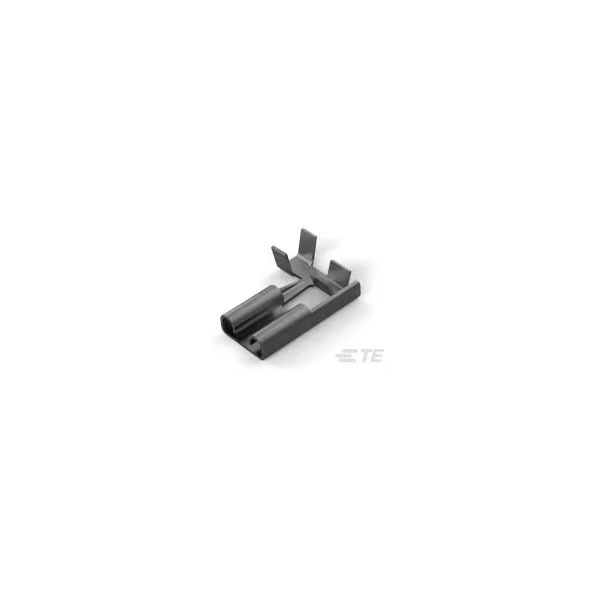

The TE Connectivity 280050-2 is a faston flag female terminal designed for unshrouded connections.

It supports 16-20 AWG wire sizes, providing secure electrical connections.

The part is made from durable materials ensuring reliability in harsh environments.

It is typically used in automotive and industrial applications for quick and easy wire termination.


Insulation Non-Insulated
Tab Width 0.25inch
Tab Thickness 0.032inch
Gender Female
Barrel Type Open
Compatible Insulation Diameter Range .093 – .13
Compatible With Agency/Standards Products UL
Contact Base Material Brass
Contact Plating Tin
Crimp Type F-Crimp
ELV Compliant
Flammability Rating UL94 V-2
Insulated Wire Support Yes
Insulation Diameter 3.3mm
Insulation Option Uninsulated
Lead Free Not Applicable
Length 16.8mm
Material Brass
Mating Retention Type Dimple
Mating Tab Thickness .032
Mating Tab Width .25
Mount Free Hanging
Operating Temperature Range -40 – 230
Package Quantity 4000
Packaging Tape and Reel
Packaging Method Strip/Reel
Packaging Quantity 4000
Plating Tin
Plating Thickness 1um
Product Length .661
Product Terminates To Wire & Cable
Radiation Hardening No
Reach SVHC Compliant Unknown
RoHS Compliant Yes
Series Faston™
Tab Length 0.299inch
Terminal Material Brass
Terminal Orientation Flag
Terminal Plating Material Tin
Termination Receptacle
Type Quick Disconnects
UL Flammability Rating UL 94V-2
Wire Gauge (Max) 20AWG
Wire Gauge (Min) 5AWG
Wire Insulation Support With
Wire Size 16 – 20
Wire/Cable Diameter 0.13inch
Wire/Cable Type Discrete
