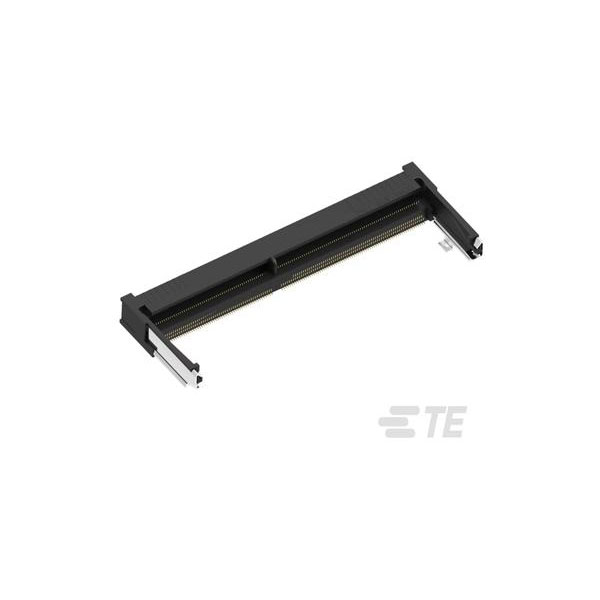

TE Connectivity 2309409-1 Card Edge Connector Female 260 Contact 2 Row

MPN: 2309409-1
Brand: TE Connectivity
Order Code: 14-2311
Country of Origin: China

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
400+	£0.911

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 400

Despatched within 5 working days - 4,800 in stock

Product Details
Quick Quote

TE Connectivity's 2309409-1 is a card edge connector featuring a female configuration with 260 contacts arranged in two rows.

It is designed for reliable connections and supports high-density applications.

This connector is often used in data communication and networking equipment.

The product ensures robust performance and secure connections in demanding environments.

Type	SO DIMM Sockets
Number of Positions	260
Centerline (Pitch)	0.508mm
Circuit Application	Power
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Profile	Low
Connector System	Cable-to-Board
Contact Base Material	Copper Alloy
Contact Current Rating (Max)	.5
Contact Mating Area Plating Material	Gold Flash
Housing Material	High Temperature Thermoplastic
Mating Alignment Type	Standard Keying
Military Spec	True
Number of Rows	2
Operating Temperature Range	-67 – 185
Packaging Method	Tape & Reel
Packaging Quantity	800
PCB Contact Termination Area Plating Material	Gold Flash
PCB Mount Retention	With
PCB Mount Retention Type	Solder Peg
REACH	Compliant
ROHS	Yes
Row-to-Row Spacing	0.32200000000000001
Termination Method to PCB	Surface Mount
UL Flammability Rating	UL 94V-0
