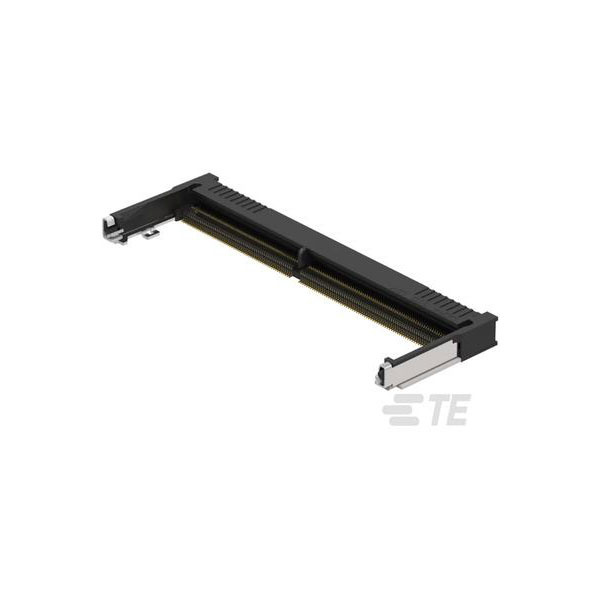

TE Connectivity 2309407-1 Card Edge Connector Female 260 Contacts 2 Rows

TE Connectivity
Order Code:

14-2308

Brand: TE Connectivity MPN: 2309407-1
Qty Unit Price (Ex VAT)
450+ £1.01
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 450
Available to back orderBack order, lead time 14 days

TE Connectivity's 2309407-1 is a card edge connector designed with a female interface.

It features 260 contacts arranged in 2 parallel rows for reliable connectivity.

This component is typically used in circuit board applications requiring high-density connections.

It is ideal for electronic devices requiring robust and efficient data transmission.


Type SO DIMM Sockets
Number of Positions 260
Centerline (Pitch) 2.0828mm
Circuit Application Power
Connector & Contact Terminates To Printed Circuit Board
Connector Mounting Type Board Mount
Connector Profile Low
Connector System Cable-to-Board
Contact Base Material Copper Alloy
Contact Current Rating (Max) .5
Contact Mating Area Plating Material Gold Flash
Housing Material High Temperature Thermoplastic
Mating Alignment Type Standard Keying
Number of Rows 2
Operating Temperature Range -67 – 185
Packaging Method Tape & Reel
Packaging Quantity 900
PCB Contact Termination Area Plating Material Gold Flash
PCB Mount Retention With
PCB Mount Retention Type Solder Peg
Row-to-Row Spacing 0.32200000000000001
Termination Method to PCB Surface Mount
UL Flammability Rating UL 94V-0
