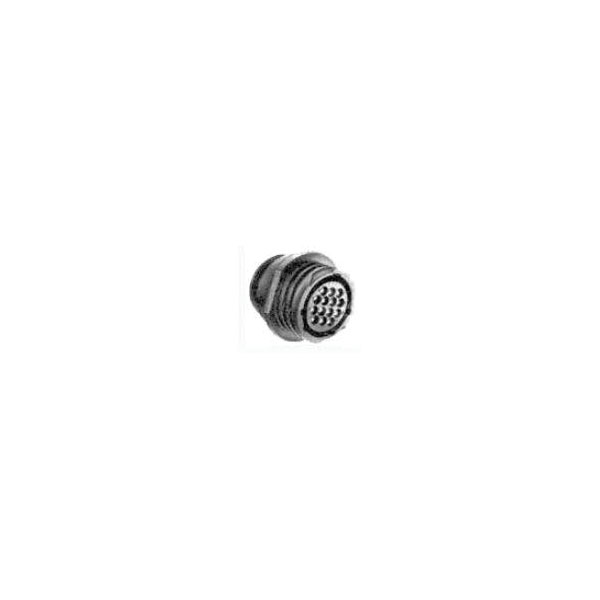

The TE Connectivity 205090-1 is a connector accessory designed for cables with a maximum diameter of 0.072 inches.
It is robust and reliable, ensuring secure cable connections.
This accessory is commonly used in electronic and electrical applications requiring precise cable management.
Ideal for environments demanding quality cable connectivity and organisation.
| Type |
Bullet connector |
| AWG |
24 - 20 |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
1.83 |
| Connection Angle |
180° |
| Connector Type |
Socket |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating (Max) |
7.5 |
| Contact Gender |
Female |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
50 |
| Contact Plating |
Gold |
| Contact Post Length |
0.31mm |
| Contact Style |
Crimp |
| Contact Type |
Socket |
| Contact Underplating Material |
Nickel |
| Cross Section |
0.20mm² |
| Current Rating |
7.5a |
| Depth |
4.7mm |
| ELV |
Compliant |
| For Use With/ Related Products |
CPC |
| Gender |
Female |
| Height |
2.16mm |
| Lead Free |
Lead Free |
| Lead Length |
310um |
| Length |
13.61mm |
| Max Current Rating |
7.5a |
| Max Operating Temperature |
125°C |
| Min Operating Temperature |
-55°C |
| Mount |
Cable |
| Number of Contacts |
1 |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 257 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
1000 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
AMPLIMITE 109 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Termination Post & Tail Length |
.31 |
| Wire Gauge (Max) |
20AWG |
| Wire Gauge (Min) |
24AWG |
| Wire Size |
24 – 20 |
| Wire/Cable Gauge |
20AWG |
