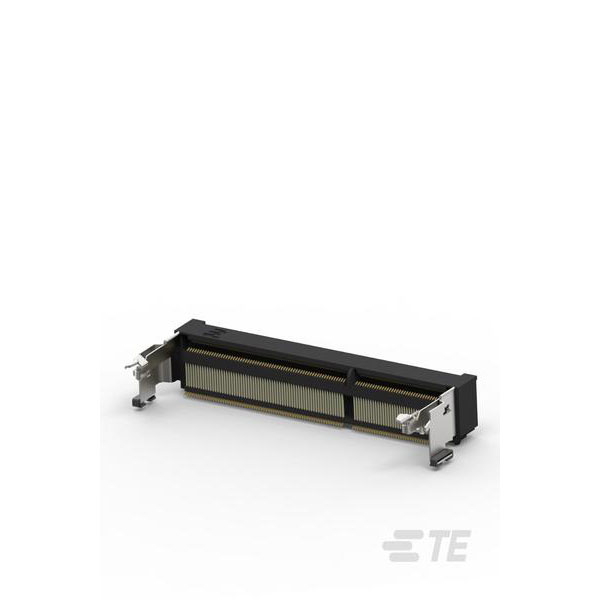

The TE Connectivity 2013310-1 is a female DDR3 DIMM connector with 204 positions and a height of 9.2 mm.
Designed for high-speed data transmission, this connector is unshrouded to facilitate easy insertion.
It is commonly used in computer motherboards and servers to connect memory modules.
This durable component ensures reliable performance in demanding environments.
| Type |
SO DIMM Sockets |
| Number of Positions |
204 |
| Memory Type |
SDRAM, DDR3 SDRAM, |
| Mounting Type |
Horizontal |
| Centerline (Pitch) |
0.6096mm |
| Circuit Application |
Power |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Connector Profile |
Standard |
| Connector System |
Cable-to-Board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
500mA |
| Contact Current Rating (Max) |
.5 |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold Flash |
| Contact Plating |
Gold |
| Depth |
26.5mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Housing Colour |
Black |
| Housing Material |
High Temperature Thermoplastic |
| Insulation Material |
Thermoplastic |
| Length |
76.1mm |
| Mating Alignment Type |
Standard Keying |
| Maximum Operating Temperature |
185°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Surface Mount |
| Number of Contacts |
204 |
| Number of Rows |
2 |
| Operating Temperature Range |
-67 – 185 |
| Orientation |
Straight |
| Package Quantity |
20 |
| Packaging |
Tray |
| Packaging Method |
Semi-Hard Tray Assembly |
| Packaging Quantity |
20 |
| PCB Contact Termination Area Plating Material |
Gold |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Solder Peg |
| Pitch |
0.6mm |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.322inch |
| Row-to-Row Spacing |
0.32200000000000001 |
| Sealable |
No (Without) |
| Stack Height |
0.362inch |
| Termination |
Solder |
| Termination Method to PCB |
Surface Mount |
| UL Flammability Rating |
UL 94V-0 |
| Voltage Rating |
1.5v |
