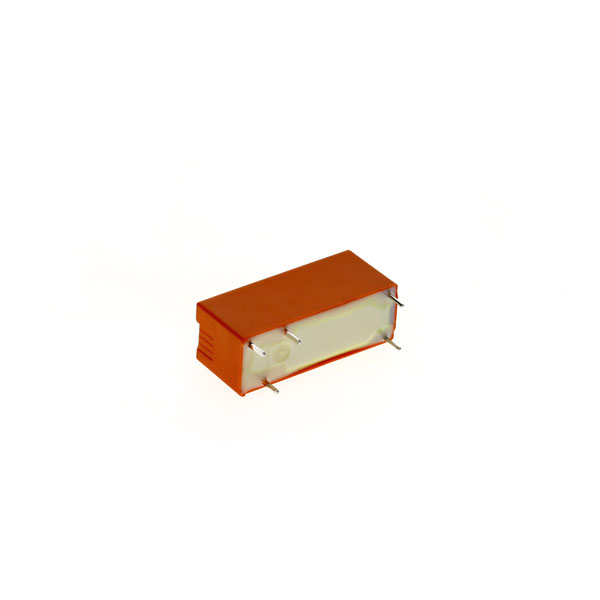

TE Connectivity 2-1393225-2 Relay SPDT 8A 48VDC Mini PWR PCB

Inc VAT

Qty	Unit Price (Ex VAT)
60+	£2.48

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 60

Available to back orderBack order, lead time 4 months

TE Connectivity's relay with the part number 2-1393225-2 is a single pole double throw (SPDT) relay.

It is capable of handling a current of up to 8A.

The relay operates at 48VDC, making it suitable for power management tasks.

Typically used in printed circuit boards, it is ideal for applications in industrial and commercial electronics.

Coil Voltage	48V
Contact Configuration	1CO (SPDT)
Coil Current	5.1mA
Coil Power	300mW
Coil Resistance	9.391kR
Coil Type	Non-Latching
Coil Voltage (DC)	48v
Contact Current Rating	8a
Contact Material	Silver
Contact Voltage Rating (AC)	250v
Height	0.484inch
Length	28.5mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Mount	Through Hole
Mounting Type	PCB
Operate Time	9ms
Package Quantity	20
Packaging	Rail/Tube
Relay Type	General Purpose
Release Time	5ms
RoHS Compliant	Yes
Series	RY, SCHRACK
Termination	PCB
Throw Configuration	SPDT
Type	Power Relays
Weight	0.282oz
Width	10.1mm
