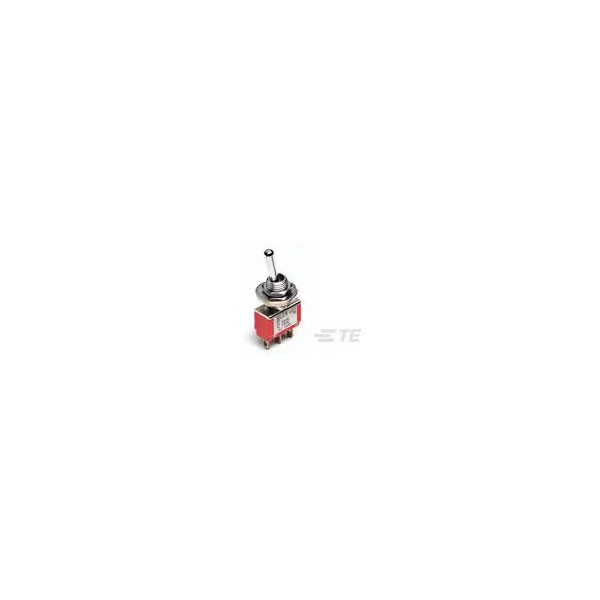

TE Connectivity 1825138-3 Toggle Switch DP ON-ON Lock Lug

TE Connectivity
Order Code:

15-1917

Brand: TE Connectivity MPN: 1825138-3
Qty Unit Price (Ex VAT)
20+ £10.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 20
50 in stock, despatched in 5 working days

The TE Connectivity 1825138-3 is a toggle switch featuring a double pole (DP) configuration.

It operates with an ON-ON mechanism and includes a lock lug for secure placement.

Designed for reliable performance, it suits various industrial and electronic applications.

This switch is ideal for controlling circuit functions in machinery and equipment.


Switch Function On-On
Actuator Type LOCKING LEVER
Actuator Length 16.51mm
Illumination Type Non-Illuminated
Actuator Material Brass
Contact Base Material Copper
Contact Current Rating 5a
Contact Material Copper
Contact Plating Silver
DC Rated Voltage 28v
Depth 11.43mm
Dielectric Withstanding Voltage (Max) 1000
Electrical Life 6000Cycles
ELV Compliant
Flammability Rating UL94 V-1
Insulation Resistance 1000
Length 12.7mm
Max Current Rating 5a
Max Operating Temperature 85°C
Max Voltage Rating (AC) 250v
Max Voltage Rating (DC) 28v
Min Operating Temperature -30°C
Mount Solder
Number of Positions 2
Operating Voltage 28
Package/Case 125
Packaging Bulk
Product Orientation Vertical
Reach SVHC Compliant Unknown
RoHS Compliant Yes
Sealable Yes (With)
Series Gemini A
Termination Lug
Throw Configuration DPDT
Type Toggle Switches
UL Flammability Rating UL 94V-1
Voltage Rating (AC) 125v
