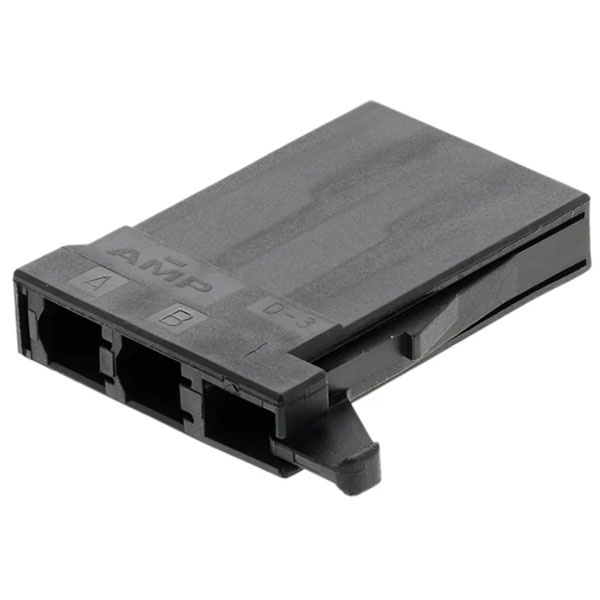

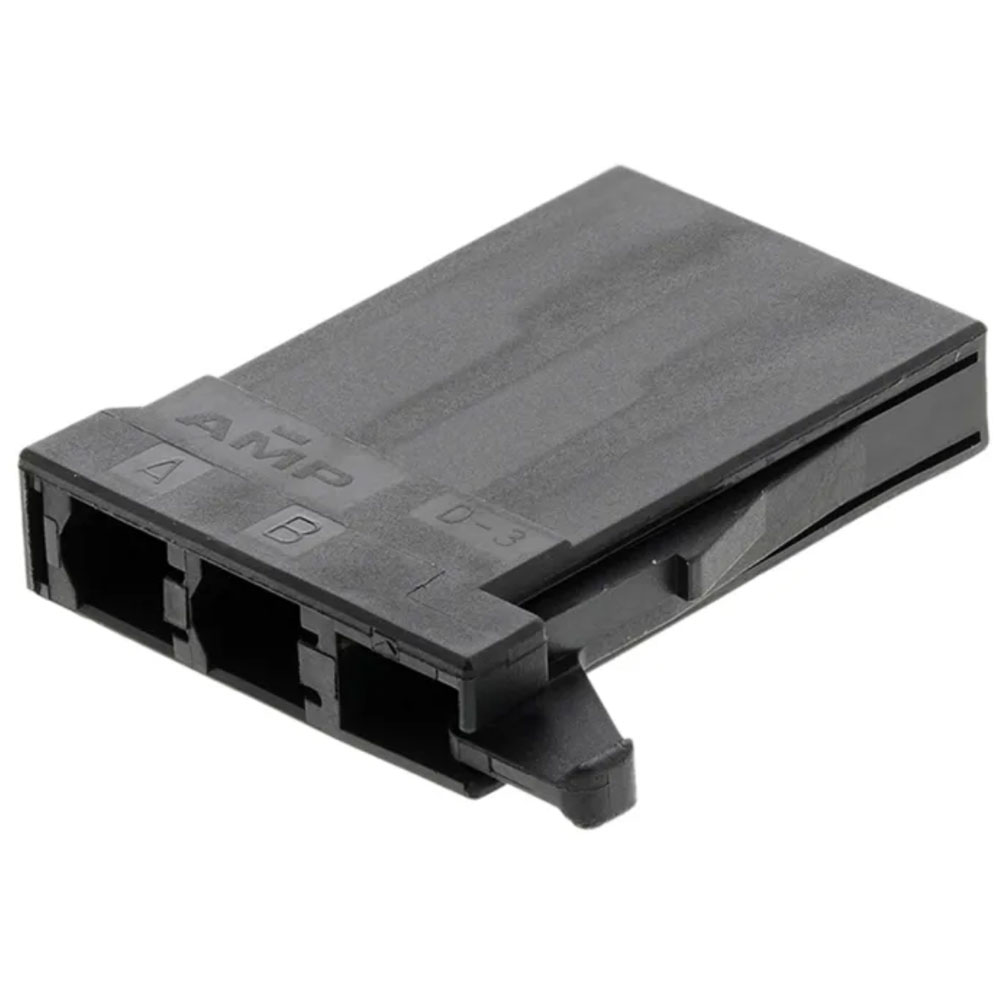

TE Connectivity 175362-1 is a female unshrouded 2-position housing connector.
It is designed for wire-to-board power and signal applications, providing secure mechanical and electrical connections.
The connector is commonly used in automotive and industrial applications.
Its robust design ensures reliable performance in demanding environments.
| Mounting Type |
Termination |
| Plug / Socket |
Socket |
| Approvals |
UL |
| Centerline (Pitch) |
5.08mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector Body Material |
Plastic |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Copper Alloy |
| Contact Type |
Receptacle |
| Depth |
22.8mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Halogen free |
Halogen Free |
| Height |
0.897inch |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Lead Free |
Lead Free |
| Length |
0.826inch |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
600v |
| Min Operating Temperature |
-67°C |
| Mount |
Free Hanging, Cable |
| Number of Contacts |
2 |
| Number of Positions |
2 |
| Number of Rows |
1 |
| Number of Ways |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
400 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
6400 |
| Pitch |
5.08 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-3500 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total no. of pins |
1 |
| Type |
Socket |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating (AC) |
600v |
| Width |
0.18inch |
| Wire/Cable Gauge |
16AWG |
