TE Connectivity 1721081-5 PCJ Low Signal Relay PCB SPST-NO 12VDC Coil

TE Connectivity
Order Code:

14-8506

Brand: TE Connectivity MPN: 1721081-5
Qty Unit Price (Ex VAT)
125+ £1.51
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 125
4,925 in stock, despatched in 5 working days

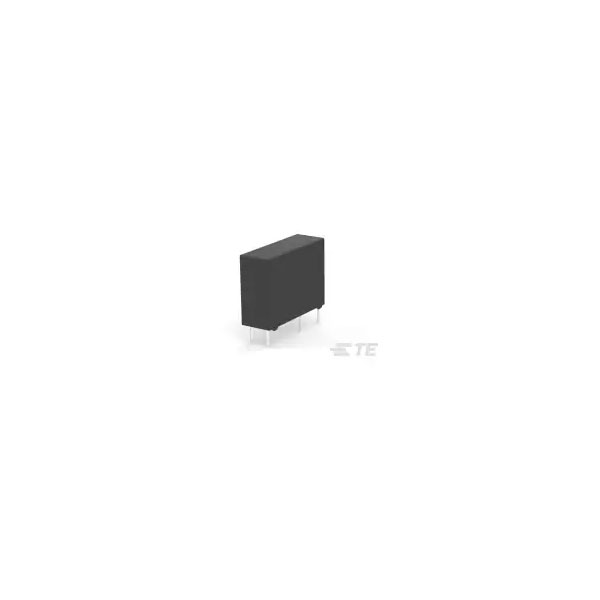

TE Connectivity's 1721081-5 is a low signal relay designed for PCB applications.

It features a SPST-NO contact configuration and operates with a 12VDC coil.

This relay is particularly suitable for telecommunications and industrial control systems.

Its compact design ensures efficient performance in space-constrained environments.


Type Relay
Coil Voltage 12V DC
Contact Configuration SPST-NO
Coil Resistance 720r
Length 20.39mm
Width 7mm
Height 15.01mm
Application(s) POWER
Coil Current 16.7mA
Coil Power 200mW
Coil Type Non-Latching
Coil Voltage (DC) 12v
Contact Current Rating 3a
Contact Material Silver
Depth 7mm
Electrical Life 100000Cycles
ELV Compliant
Lead Free Lead Free
Life (Hours) 100000Hour
Max Current Rating 3a
Max Operating Temperature 85°C
Max Voltage Rating (AC) 400v
Min Operating Temperature -40°C
Mount Through Hole, PCB
Operate Time 10ms
Package Quantity 100
Packaging Box
Power Consumption 200mW
Relay Type General Purpose
Release Time 4ms
RoHS Compliant Yes
Series PCJ, OEG
Termination PCB
Throw Configuration SPST
Voltage Rating (AC) 400v
Weight 4g
