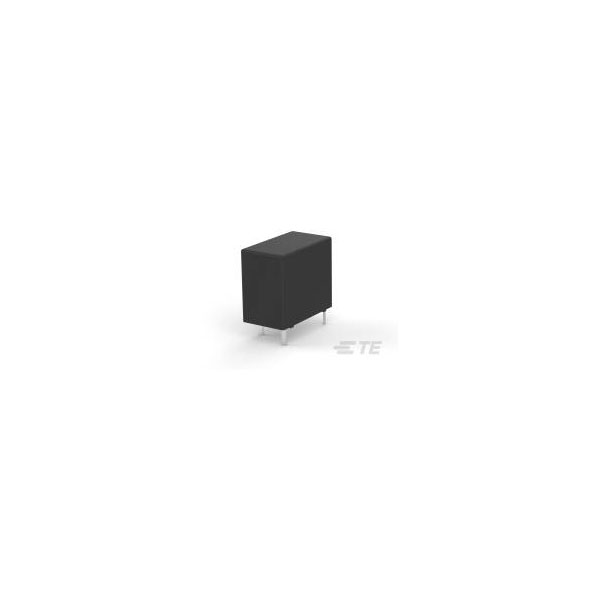

TE Connectivity 1461492-2 OJT-SS-105LM Miniature PCB Relay For Appliances

TE Connectivity
Order Code:

07-3610

Brand: TE Connectivity MPN: 1461492-2 EAN-13: 2050007211884
Qty Unit Price (Ex VAT)
5+ £0.990
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
22 available to back orderBack-order availability date - 19/05/2026

TE Connectivity offers the OJT-SS-105LM,000, a miniature PCB relay suitable for industrial applications. This relay is part of a relay socket combo, providing reliable switching capabilities in compact appliance designs. Typical applications include use in industrial machines and control panels where space saving and dependable performance are crucial.
Coil Current 50mA
Coil Power 250mW
Coil Resistance 100r
Coil Type Non-Latching
Coil Voltage (DC) 5v
Contact Current Rating 5a
Contact Material Tin, Silver
ELV Compliant
Height 14.7
Length 18.2
Max Operating Temperature 70°C
Min Operating Temperature -30°C
Misc Attribute OJT-SS-105LM,000
Mount Through Hole
Mounting Type PCB
Operate Time 15ms
Package Quantity 500
Packaging Tray
Relay Type General Purpose
Release Time 4ms
RoHS Compliant Yes
Series OJT, OEG
Termination PCB
Throw Configuration SPST
Type Power Relays
Weight 10g
Width 10.2
