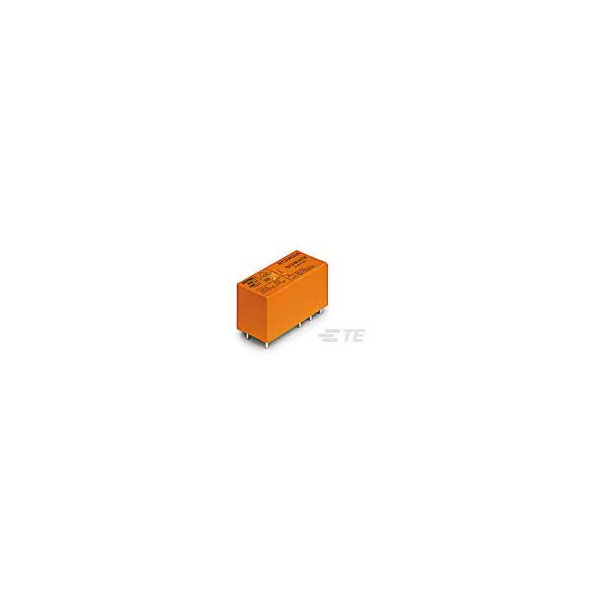

TE Connectivity's 1393240-1 is a relay offering a 1 Form C SPDT momentary contact configuration.
It is rated for a low current of 0.009A, making it suitable for precision electronic applications.
This relay is typically used in circuits requiring temporary switching through its momentary action.
Its compact design is ideal for space-constrained environments.
| Contact Configuration |
1CO (SPDT) |
| Application(s) |
POWER |
| Approvals |
UL, CSA, VDE |
| Coil Current |
8.7mA |
| Coil Power |
500mW |
| Coil Resistance |
5.52kR |
| Coil Type |
Non-Latching |
| Coil Voltage (DC) |
48v |
| Contact Current Rating |
16a |
| Contact Material |
Silver |
| Contact Type |
1 change-over |
| Contact Voltage Rating (AC) |
250v |
| Current Rating |
16a |
| DC Rated Voltage |
48v |
| Depth |
12.7mm |
| Height |
15.7 |
| Length |
29.0mm |
| Max Voltage Rating (AC) |
400v |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-40°C |
| Mount |
Through Hole, PCB |
| Number of Contacts |
1 |
| Operate Time |
8ms |
| Package Quantity |
500 |
| Package/Case |
DIP |
| Packaging |
Carton |
| Power Consumption |
400mW |
| Ratings |
IP54 |
| Reach SVHC Compliant |
Unknown |
| Relay Type |
General Purpose |
| Release Time |
6ms |
| RoHS Compliant |
Yes |
| Series |
RT1, SCHRACK |
| Termination |
Plug |
| Throw Configuration |
SPDT |
| Type |
Power Relay |
| Weight |
0.494oz |
| Width |
12.7mm |
