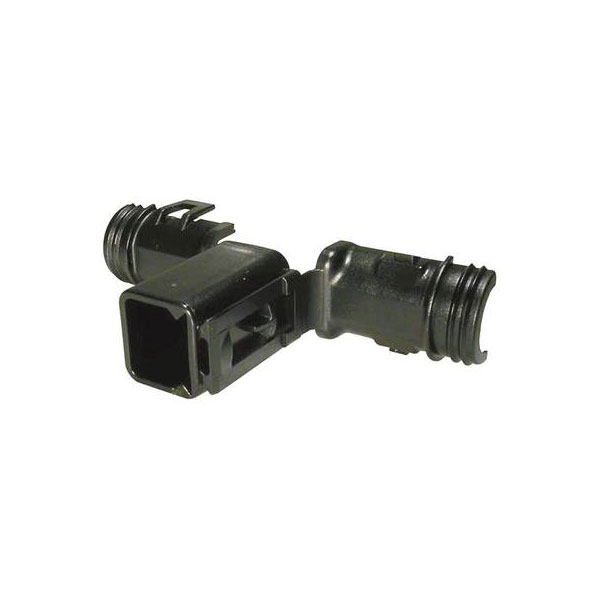

TE Connectivity 1011-257-0205 DT Series Sleeves 2-6 Pin 180°/90° Options

TE Connectivity manufactures the 1011-257-0205 bullet connector, known for its reliability in secure electrical connections. It features a robust design ideal for automotive and industrial applications. This connector ensures efficient current flow in harsh environments.

Type	Bullet connector
Body Material	Nylon, Polyamide, Plastic
Cable Ø (max.)	3.68mm
Cable Ø range	1.35 - 3.68mm
Cable Ø up to	1.35mm
Case Material	Thermoplastic material
Color	Black
Colour	Black
Compatible Cable Diameter Range	.236 – .394
Connection Angle	180°
Connector Type	Strain relief
Cross Section	2 mm² (max)
Flammability Rating	UL94 HB
IP Rating	IP6K9K
Max Operating Temperature	125°C
max. cross section	2mm²
Max. temperature	+85°C
Min Operating Temperature	-55°C
Min. temperature	-40°C
Mount	Cable
Nominal Current	32A
Nominal current - rounded value	32A
Nominal Voltage	600V
Number of Contacts	2
Number of Pins	2
Number of Positions	2
Operating Temperature (Max)	257
Operating Temperature Range	-67 – 257
Package Quantity	750
Packaging	Box
Packaging Method	Box
Packaging Quantity	750
Primary Product colour	Black
Primary Product Material	PA GF
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No
Series	DT
Serviceable	Yes
Strain Relief	Yes (With)
Total number of pins	2
UL Flammability Rating	UL 94HB
Wire Size	20 - 14
Wire/Cable Diameter	7.7mm
