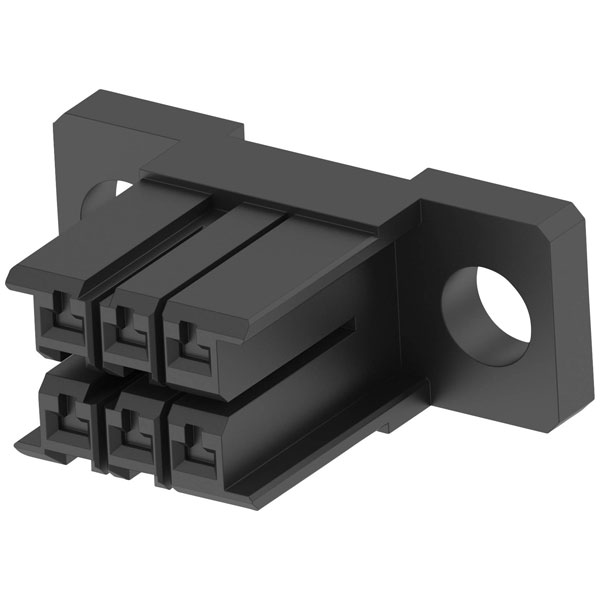

TE Connectivity 1-917266-3 DIN Connector Socket 6 Pins 1 pc

TE Connectivity
Order Code:

07-3932

Brand: TE Connectivity MPN: 1-917266-3 EAN-13: 2050005537139
Qty Unit Price (Ex VAT)
5+ £1.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
200 in stock, despatched in 4 working days

TE Connectivity manufactures the DIN connector 1-917266-3, a socket with a total of 6 pins. This part is robustly designed to ensure reliable electrical connections in various electronic applications. It is commonly used in telecommunications and audio equipment, benefitting from its standardised form factor.
Mounting Type Termination
Plug / Socket Socket
No. of Contacts 6
Approvals UL
Body Material Nylon, Polyamide
Centerline (Pitch) 3.7846mm
Circuit Application Power & Signal
Color Black
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector Body Material Plastic
Connector Product Type Housing
Connector System Wire-to-Board
Contact Gender Female
Contact Type Female Socket
Depth 25.65mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Receptacle
Halogen free Halogen Free
Height 25.65mm
Housing Color Black
Lead Free Lead Free
Length 40mm
Mating Retention With
Max Operating Temperature 221°C
Max Voltage Rating (AC) 600v
Min Operating Temperature -67°C
Mount Panel, Cable
Number of Contacts 6
Number of Positions 6
Number of Rows 2
Number of Ways 6
Operating Temperature Range -67 – 221
Orientation Straight
Package Quantity 200
Packaging Bag
Pitch 5.08
Preloaded No
Primary Product colour Black
Primary Type CONNECTOR
Reach SVHC Compliant No
RoHS Compliant Yes
Row Spacing 7.62mm
Row-to-Row Spacing .299
Sealable No
Selectively Loaded No (Without)
Series Dynamic D-3200
Termination Crimp
Termination Method to Wire & Cable Crimp
Total no. of pins 6
Type Socket
VDE Tested No
Width 16.5mm
Wire/Cable Gauge 16AWG
