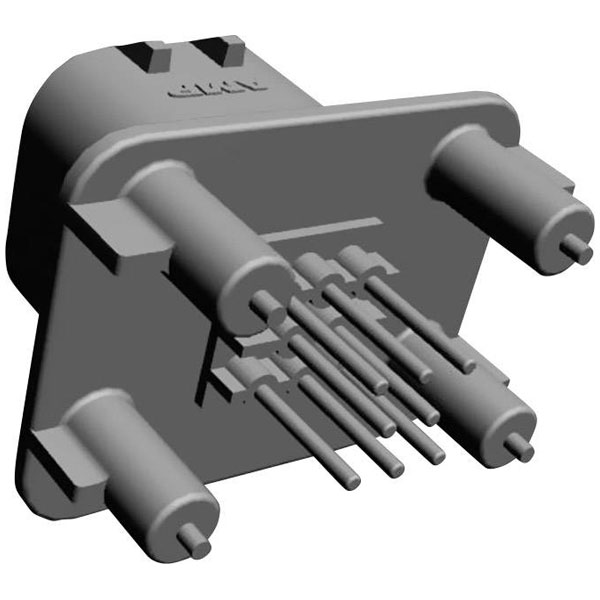

The TE Connectivity AMPSEAL is a precision-built pin strip with a total of 8 pins, identified by part number 1-776275-1. This component is widely used for secure electrical connections in automotive and industrial applications, where reliability and precision are crucial. It features robust construction suitable for harsh environments, ensuring long-term functionality and resistance to environmental factors.
| Type |
Plug, straight |
| Number of Contacts |
8 |
| Gender |
Male |
| Number of Rows |
3 |
| Case Material |
Thermoplastic material |
| Circuit Application |
Power |
| Color |
Black |
| Colour |
Black |
| Connection |
Print |
| Connector contact surface |
Gold plated |
| Connector System |
automotive |
| Contact Finish - Mating |
Gold-Palladium |
| Contact Material |
Copper alloy |
| Contact Plating |
Gold |
| Contact Shape |
Circular |
| Contact Type |
Male Pin |
| Current Rating |
8A |
| Depth |
32.1mm |
| Dimensions |
(L x W x H) 32.1 x 40.8 x 34.3 mm |
| Flammability Rating |
UL94 V-0 |
| Height |
34.3mm |
| Housing Color |
Black |
| Industrial packaging |
No |
| Insulation Color |
Black |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP6K9K |
| Length |
32.1mm |
| Max Operating Temperature |
125°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+125°C |
| Min Operating Temperature |
-40°C |
| Min. temperature |
-40°C |
| Misc Attribute |
AMPSEAL |
| Mount |
Through Hole, Panel |
| Nominal Voltage |
250V AC |
| Number of Positions |
8 |
| Number of Signal Positions |
8 |
| Operating Supply Voltage |
250v |
| Orientation |
Straight |
| Package Quantity |
1 |
| Packaging |
Bulk |
| PCB Mount Alignment |
No (Without) |
| PCB Mount Retention |
Without |
| PCB Thickness |
0.062inch |
| Pin shape |
Circular |
| Pitch |
0.157inch |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
AMPSEAL |
| Shielding |
Unshielded |
| Tab Thickness |
1.3mm |
| Termination |
Solder |
| Voltage Rating (AC) |
250v |
| Width |
40.8mm |
