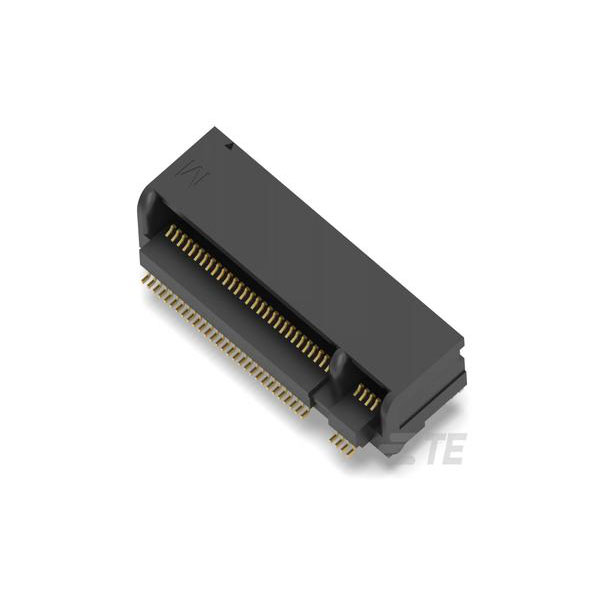

TE Connectivity 1-2199119-5 is a card edge connector featuring 67 female contacts.
It is unshrouded, ensuring a compact design suitable for space-constrained applications.
This connector is typically used in electronic devices and circuit boards where reliable signal transmission is essential.
Its durable design supports consistent performance in various environmental conditions.
| Type |
Card Edge Connector |
| Number of Positions |
67 |
| Centerline (Pitch) |
0.508mm |
| Circuit Application |
Power |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector & Keying Code |
M |
| Connector Height |
0.126 |
| Connector Length |
0.86199999999999999 |
| Connector Mounting Type |
Board Mount |
| Connector System |
Board-to-Board |
| Connector Width |
0.34300000000000003 |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
500mA |
| Contact Current Rating (Max) |
0.5 |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15.0 |
| Contact Plating |
Gold, Matte |
| Current Rating |
500mA |
| Gender |
Female |
| Height |
3.2mm |
| Housing Color |
Black |
| Housing Material |
High Temperature Thermoplastic |
| Insulation Material |
Thermoplastic |
| Length |
0.862inch |
| Max Operating Temperature |
80°C |
| Min Operating Temperature |
-40°C |
| Mount |
Surface Mount |
| Number of Contacts |
67 |
| Number of Rows |
2 |
| Operating Supply Voltage |
50v |
| Operating Temperature Range |
-40 – 176 |
| Operating Voltage |
50 |
| Orientation |
Right Angle |
| Packaging |
Tape and Reel |
| Packaging Method |
Tape & Reel |
| PCB Contact Termination Area Plating Material |
Gold Flash |
| PCB Contact Termination Area Plating Material Finish |
Matte |
| PCB Mount Orientation |
Right Angle |
| PCB Mounting Orientation |
Right Angle |
| Pitch |
0.5mm |
| Plating |
Gold |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Row Spacing |
7.55mm |
| Sealable |
No (Without) |
| Termination |
Solder |
| Termination Method to PCB |
Surface Mount |
| Voltage Rating |
50v |
| Width |
8.7mm |
