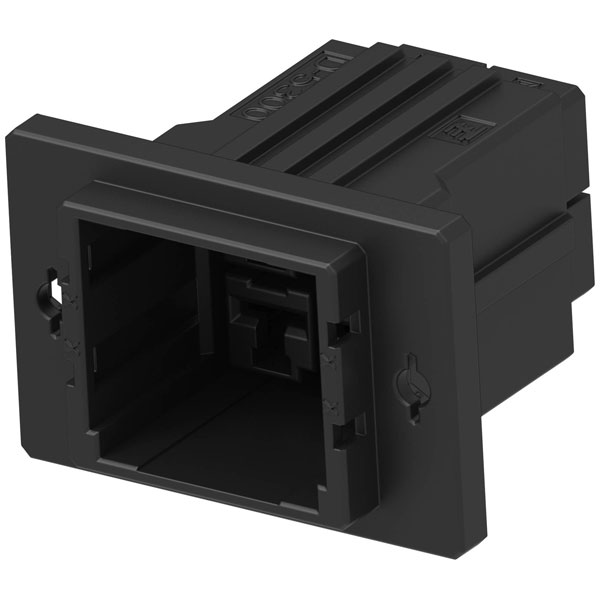

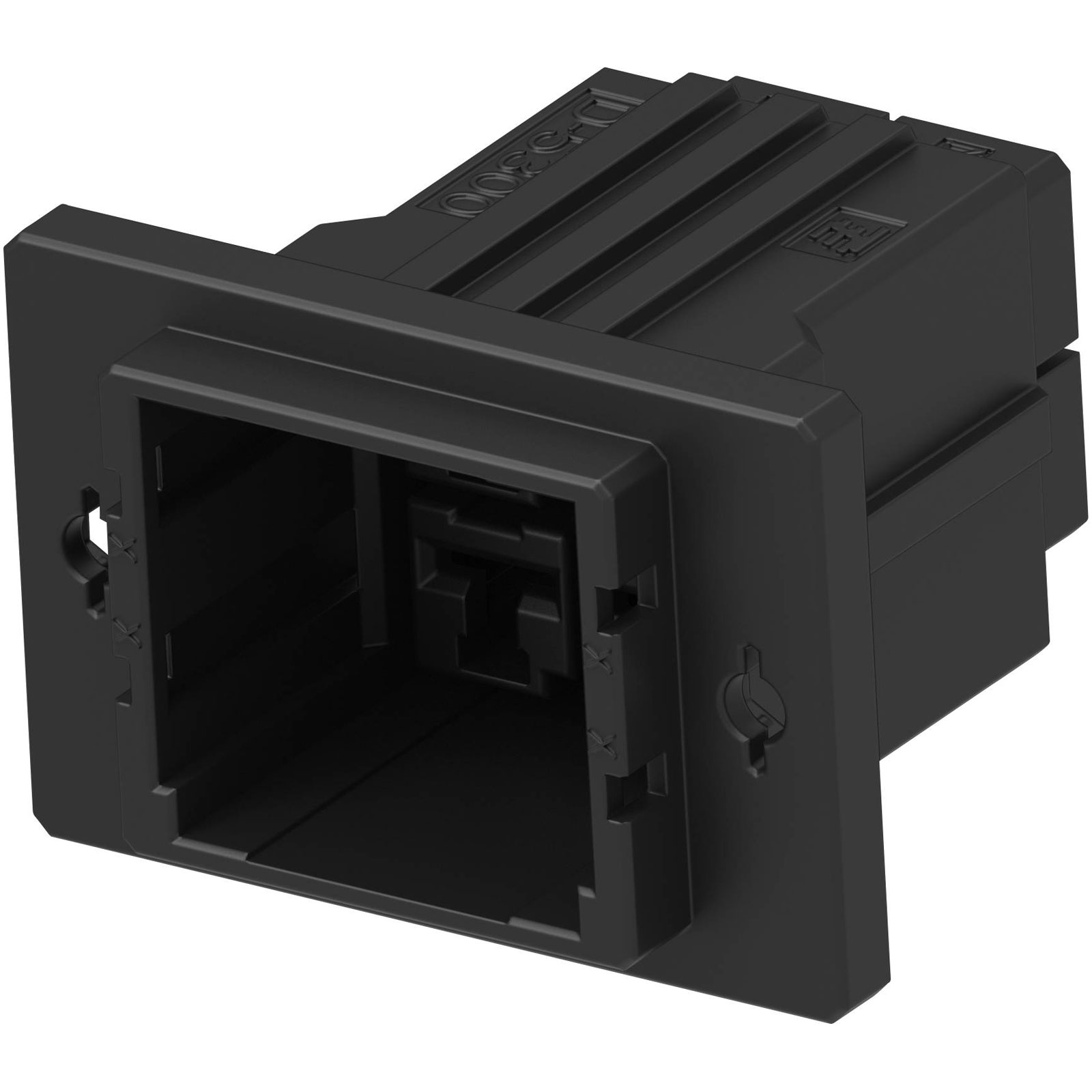

The TE Connectivity 1-1747822-2 is a female dynamic series connector with a 4-position and 10.16 mm pitch.
This unshrouded connector offers reliable mechanical and electrical performance.
It is typically used in industrial and automation equipment.
The connector is designed to facilitate secure and efficient connectivity in various applications.
| Mounting Type |
Termination |
| Plug / Socket |
Socket |
| No. of Contacts |
4 |
| Approvals |
UL |
| Centerline (Pitch) |
10.1346mm |
| Circuit Application |
Power |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector Body Material |
Plastic |
| Connector Mounting Type |
Panel Mount |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Board |
| Contact Type |
Female Socket |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Halogen free |
Halogen Free |
| Height |
47mm |
| Housing Color |
Black |
| Length |
1.85inch |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Min Operating Temperature |
-67°C |
| Mount |
Panel, Cable |
| Number of Contacts |
4 |
| Number of Positions |
4 |
| Number of Rows |
2 |
| Number of Ways |
4 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
75 |
| Packaging |
Bag |
| Pitch |
10.16mm |
| Preloaded |
No |
| Primary Product colour |
Black |
| RoHS Compliant |
Yes |
| Row Spacing |
0.399inch |
| Row-to-Row Spacing |
.399 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-5300 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total no. of pins |
4 |
| Type |
Socket |
| VDE Tested |
No |
| Width |
28.32mm |
