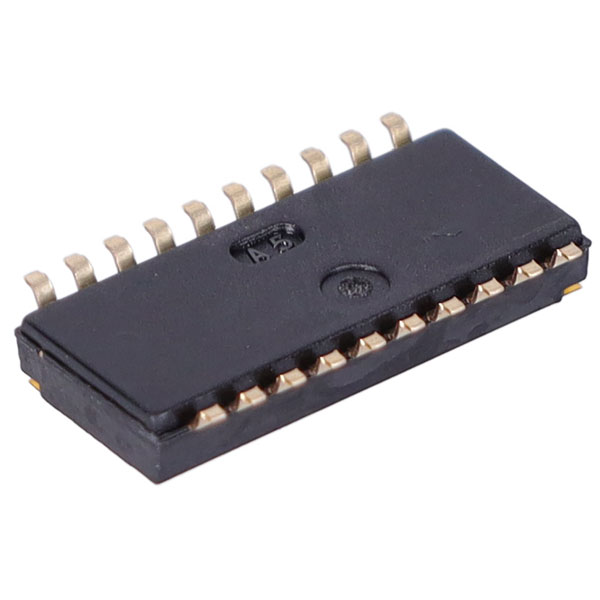

The TE Connectivity 1-1571983-3 is a DIP/SIP switch featuring 10 circuits, designed for surface mount technology.
It offers reliable slide actuation for circuit selection.
Typical applications include setting configurations or selections in electronic devices.
This switch is ideal for use in telecommunications and consumer electronics.
| Type |
DIP/SIP Switch |
| Circuit |
SPST |
| Number of Positions |
10 |
| Current Rating |
1A |
| Voltage Rating |
24VDC |
| Actuator Type |
Slide (Standard) |
| Pitch |
1.27mm |
| Actuator Length |
0mm |
| Actuator Material |
Polymer |
| Body Material |
Polyphenylene |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
100mA |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold |
| Contact Underplating Material |
Nickel |
| DC Rated Voltage |
50v |
| Depth |
8.13mm |
| Electrical Life |
1000Cycles |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Height |
7.31mm |
| Housing Colour |
Black |
| Lead/Base Style |
Gull Wing |
| Length |
13.82mm |
| Max Current Rating |
25mA |
| Max Operating Temperature |
85°C |
| Max Voltage Rating (DC) |
24v |
| Mechanical Life |
1000Cycles |
| Min Operating Temperature |
-30°C |
| Mount |
Surface Mount |
| Number of switches |
10 |
| Operating Temperature Range |
-30 – 85 |
| Operating Voltage |
50 |
| Orientation |
Straight |
| Package Quantity |
30 |
| Packaging |
Tape and Reel |
| Packaging Method |
Tube |
| Packaging Quantity |
30 |
| PCB Contact Termination Area Plating Material |
Gold |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
GDH |
| Terminal Pitch |
1.27mm |
| Termination |
Gull Wing |
| Throw Configuration |
SPST |
| UL Flammability Rating |
UL 94V-0 |
| Washable |
Yes |
| Width |
8.13mm |
