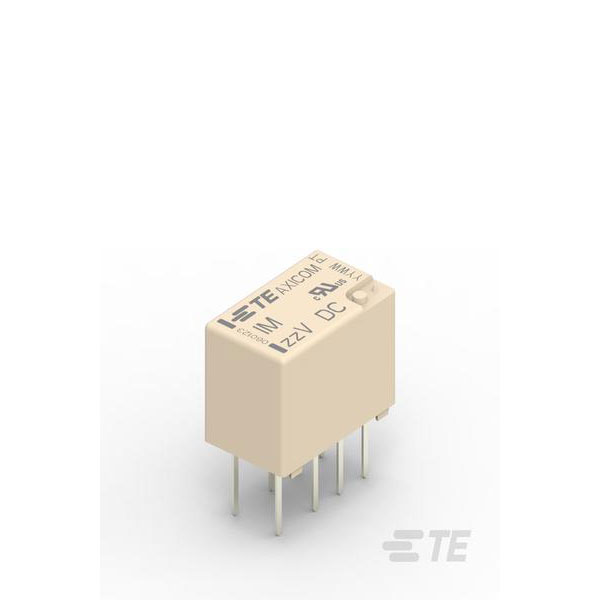

TE Connectivity 1-1462038-2 IM Relay 140MW 4.5V HF/RF Applications

MPN: 1-1462038-2
Brand: TE Connectivity
Order Code: 14-9004
Country of Origin: Switzerland

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
80+	£2.94

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 80

Despatched within 5 working days - 460 in stock

Product Details
Quick Quote

The TE Connectivity 1-1462038-2 IM Relay is designed for high-frequency and radio frequency applications.

It operates at a power of 140 milliwatts and requires a 4.5-volt coil voltage.

Notable for its reliability and precision, it's ideal for use in telecommunications equipment.

The relay is suitable for applications demanding fast switching and consistent performance.

Type	Signal Relay
Coil Voltage	4.5V
Switching Current	2A
Coil Resistance	145r
Length	10.0mm
Width	5.7mm
Height	5.8mm
Actuating System	DC
Coil Current	31.03mA
Coil Power	140mW
Coil Type	Non-Latching
Coil Voltage (DC)	4.5v
Contact Current Rating	2a
Contact Material	Gold, Ruthenium
Contact Plating	Gold
Contact Voltage Rating (DC)	220v
Current Rating	2a
DC Rated Voltage	220v
Depth	5.7mm
ELV	Compliant
Insertion Loss	-0.03dB
Max Current Rating	2a
Max Operating Temperature	85°C
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	220v
Min Operating Temperature	-40°C
Mount	Through Hole, PCB
Operate Time	1ms
Package Quantity	1000
Package/Case	DIP
Packaging	Rail/Tube
Radiation Hardening	No
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	IM, AXICOM
Termination	PCB
Throw Configuration	DPDT
Voltage Rating (AC)	250v
Weight	0.75oz
