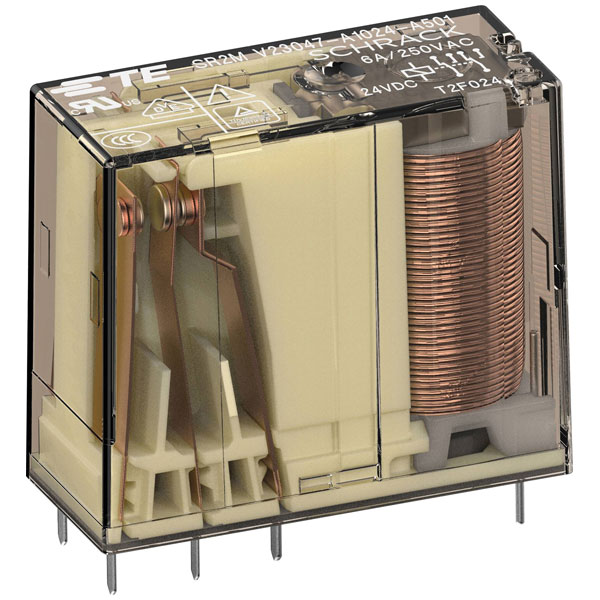

Image Representative of Range

TE Connectivity 1-1462000-3 Industrial Relay 24V DC 2 Change-Overs

Discontinued

TE Connectivity's 1-1462000-3 is a DPDT relay with two double contacts designed for through-hole mounting.

It operates at 24VDC, making it suitable for a variety of electronic and electrical applications.

This relay is often used in automation systems, industrial equipment, and telecommunications.

Its robust construction ensures reliable performance in demanding environments.

Coil Voltage	24V DC
Contact Configuration	2CO (DPDT)
Coil Current	6.2mA
Coil Power	150mW
Coil Resistance	3872Ω
Coil Type	Non-Latching
Coil Voltage (DC)	24v
Connection	THT
Contact Current Rating	2a
Contact Material	Ni
Contact Plating	Gold
Current Rating	2a
DC Rated Voltage	220v
Depth	10mm
Dimensions	(L x W x H) 20.2 x 10 x 10.8 mm
Height	10.8mm
Length	20.2mm
Max Current Rating	2a
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	220v
Maximum Operating Temperature	85°C
Maximum Temperature	+85°C
Min Operating Temperature	-55°C
Minimum Operating Temperature	-55°C
Misc Attribute	C93403
Mount	Through Hole
Nominal Voltage	24V DC
Number of Contacts	2
Operate Time	5ms
Package/Case	DIP
Packaging	Rail/Tube
Radiation Hardening	No
Ratings	IP67
RoHS Compliant	Yes
Termination	PC Pin
Throw Configuration	DPDT
Type	Industrial relay
Voltage Rating (AC)	250v
Weight	5g
Width	10.0mm
