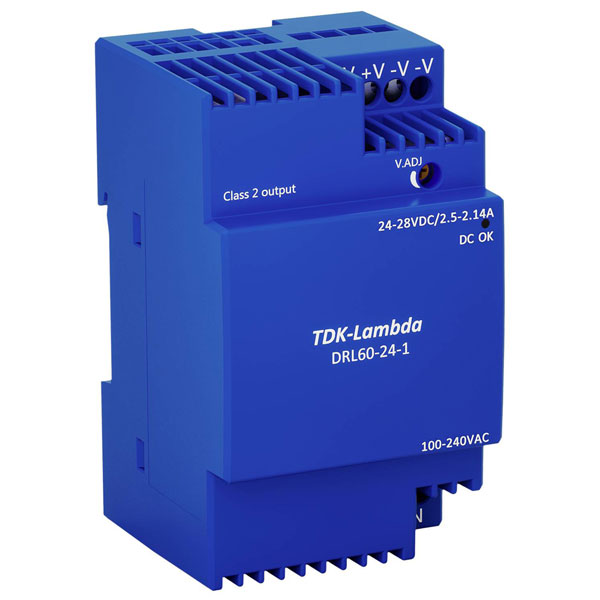

TDK-Lambda DRL60-24-1 DRL-DIN Rail PSU 24V 2.5A 60W Building Automation

The TDK-Lambda DRL60-24-1 is a rail-mounted power supply unit offering 24 V output at 2.5 A, delivering a total of 60 W. This industrial power supply is designed for DIN rail mounting, making it a robust choice for various industrial applications. It is ideal for use in automation systems, control cabinets, and other environments requiring reliable power distribution.

Type	Rail mounted PSU (DIN)
Nominal value output current 1	2.5A
Number of Outputs	1
Power Rating	60W
Cooling	Convection
Depth	55.6mm
Dimensions (L x W x H)	55.6 x 54 x 91mm
Height	91mm
Input	Single-phase
Input Voltage Range[AC]	85 to 264
Max. output current 1	2.5A
Maximum input voltage [AC]	264V
Maximum Operating Temperature	71°C
Maximum Temperature	85°C
Min. temperature	-40°C
Minimum Input Voltage [AC]	85V
Nominal value output voltage 1	24V
Operating temperature (min.)	-25°C
Option	Comply with Class 2 output per UL1310
Output power/rating	60
Output Voltage Range[DC]	24 to 28
Package / Mounting	DIN rail
Rated Output Voltage[DC]	24V
Series	DRL
SPEC ADDED	DRL,DIN rail-Single-phase, Convection, 85 to 264 AC,Comply with Class 2 output per UL1310,24 to 28 Vdc
Weight	200g
Width	54mm
