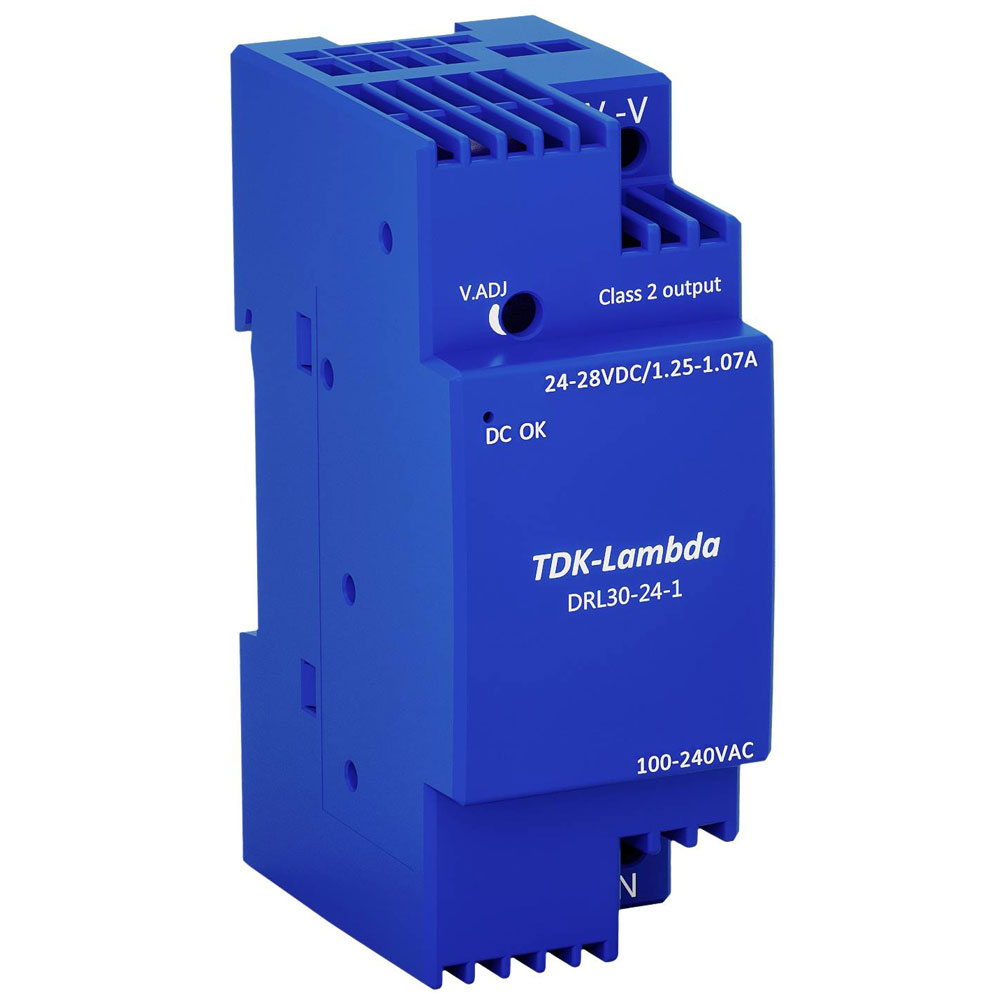

TDK-Lambda DRL30-24-1 Rail PSU 24V 1.25A 30W DIN Rail Mounted

TDK-Lambda
Order Code:

10-7602

Brand: TDK-Lambda MPN: DRL30-24-1 EAN-13: 4053199910465
Qty Unit Price (Ex VAT)
1+ £39.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
36 in stock, despatched in 4 working days

The TDK-Lambda DRL30-24-1 is a rail-mounted power supply unit with an output of 24 V and 1.25 A, delivering 30 W. It is suitable for industrial applications requiring reliable and compact power delivery. This DIN rail PSU is ideal for use in control panels and equipment cabinets.
Type Rail mounted PSU (DIN)
Output Voltage 24V
Output Current 1.25A
Number of Outputs 1
Power Rating 30W
Cooling Convection
Dim (L x W x H) 55.6 x 36 x 91 mm
Height 91mm
Input Single-phase
Input voltage (max.) 264V AC
Input Voltage Range[AC] / Vac 85 to 264
Length 55.6mm
Max. output current 1.25A
Max. temperature 85°C
Min. input voltage 85V AC
Min. temperature -40°C
Operating temperature (max.) 71°C
Operating temperature (min.) -25°C
Option Comply with Class 2 output per UL1310
Output Power / W 30
Output Voltage Range[DC] / Vdc 24 to 28
Package / Mounting DIN rail
Rated Output Voltage[DC] / Vdc 24
Series DRL
SPEC ADDED DRL,DIN rail-Single-phase, Convection, 85 to 264 AC,Comply with Class 2 output per UL1310,24 to 28 Vdc
Width 36mm
