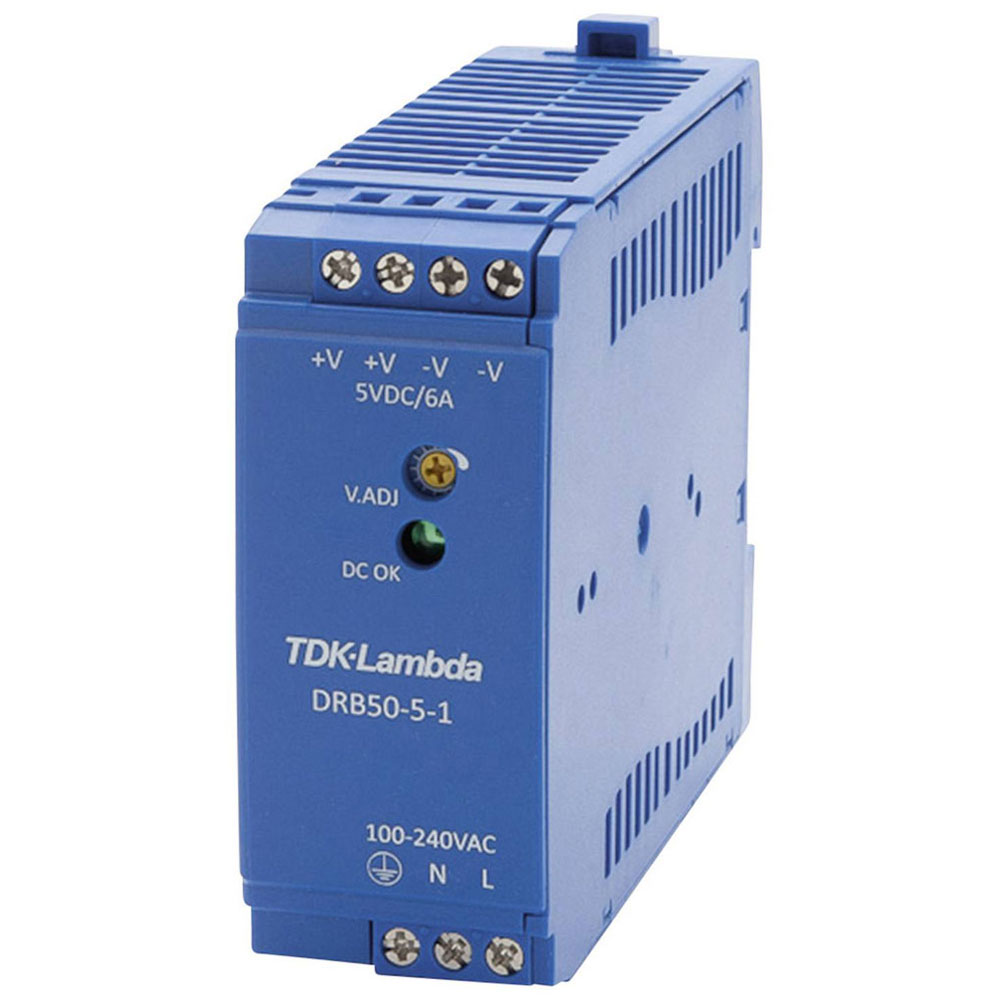

The TDK-Lambda DRB-50-5-1 is a DIN Rail Power Supply operating at 5-5.5V 6A. This power supply is ideal for low power applications that require a keenly priced basic functionality. It has been designed to support the growing trend for simple and economic DIN power solutions in industrial, building automation and process control applications. The DRB-50-5-1 combines low cost and extremely compact dimensions with industry leading efficiency of up to 91%.
Housed in a robust plastic case, this power supply features a narrow design, thus saving space on the DIN rail. It operates from a universal input of 85 to 264V AC and have EN61000-3-2 compliance, enabling worldwide use; moreover, it can withstand a voltage of 300V AC surge for 5 seconds.
- Efficiency: 79-80%
- Output voltage: 5.0V
- Output adjustment range: 5-5.5V
- Output current: 6.0A
- Max power: 30W
- Dimensions: 30(W) x 75(H) x 90(D)mm
- Temperature range: -20°C to +70°C
- Type: Single output DIN rail mount power supply
- Manufacturer's part: TDK-Lambda DRB-50-5-1
| Nominal value output current 1 |
6A |
| Number of Outputs |
1 |
| Power Rating |
30W |
| 1st secondary output voltage |
5.0V |
| 2nd secondary output voltage |
5.0V |
| 3rd secondary output voltage |
5.0V |
| Dimensions (L x W x H) |
90 x 30 x 75mm |
| Efficiency |
79-80% |
| Max. output current 1 |
6.0A |
| Max. output current 2 |
6.0A |
| Max. output current 3 |
6.0A |
| Nominal value output voltage 1 [DC] |
5V |
| Nominal value output voltage 2 |
5.0V |
| Nominal value output voltage 3 |
5.0V |
| Open Frame/DIN Rail |
DIN rail |
| Output voltage stabilized |
5.0V |
| Rated supply voltage AC 50 Hz |
5.0V |
| Rated supply voltage AC 60 Hz |
5.0V |
| Rated supply voltage DC |
5.0V |
| Supply Voltage Range |
85 to 264V |
| Temperature Range |
-20 to +70°C |
| Voltage type (supply voltage) |
5.0V |
