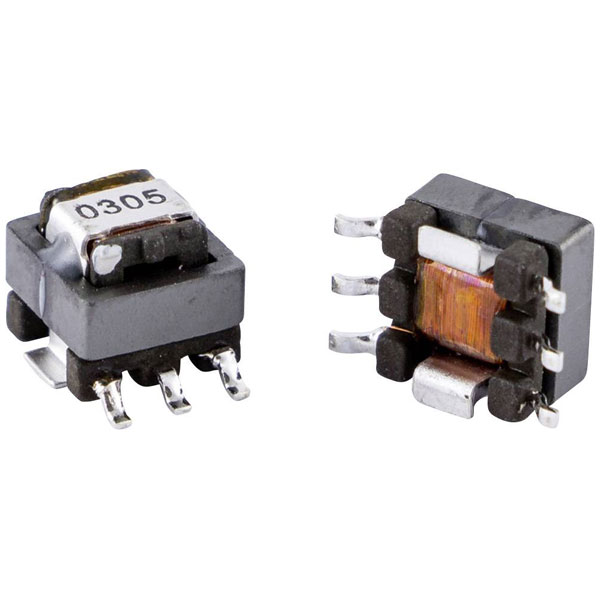

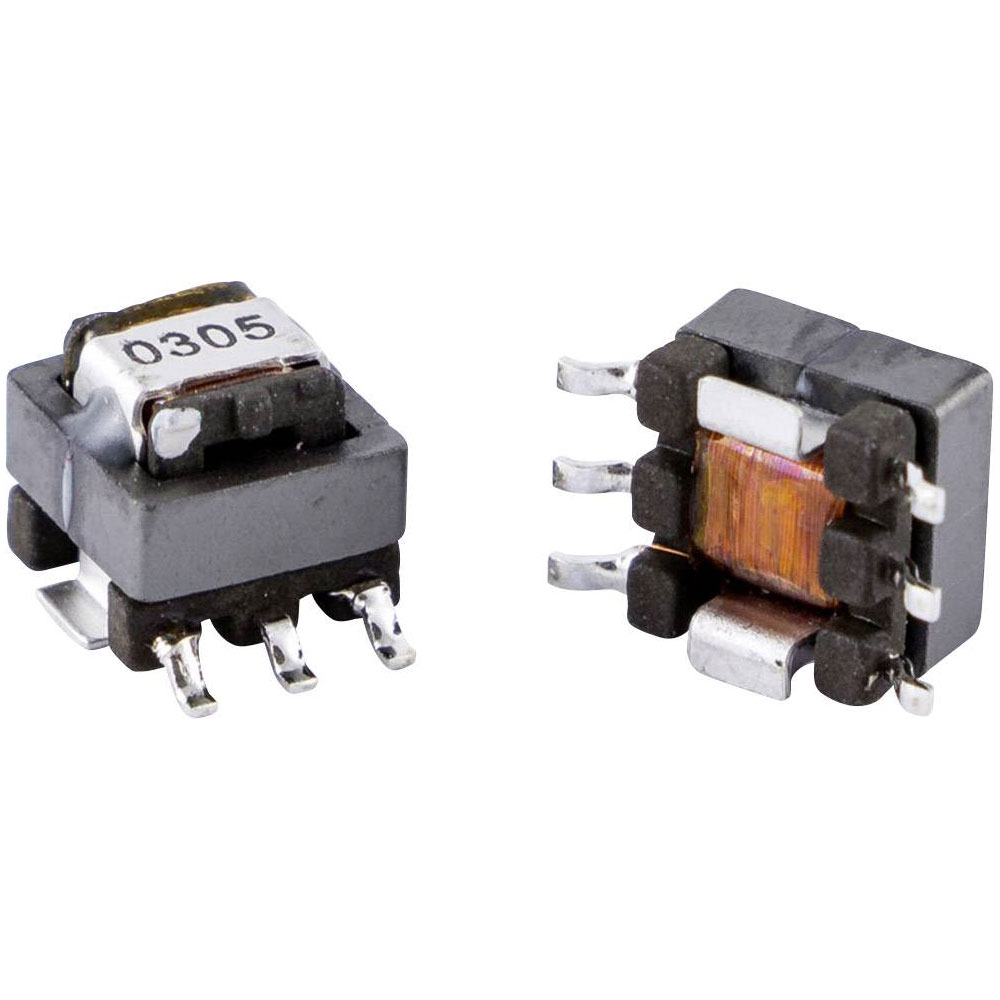

TDK B82801B0305A125 Transformer SMT Primary voltage 20 A Content 1 pc

TDK B82801B0305A125 is a state-of-the-art transformer designed for surface-mount technology with a primary voltage rating accommodating up to 20 amperes, packaged as a single unit. This component, alternatively identified by the designation 1734055, is engineered to meet high-performance requirements in various electronic circuits. Its compact form factor and efficiency make it suitable for applications in power supplies, voltage conversion, and energy-efficient systems. Furthermore, the TDK B82801B0305A125 is tailored to support the demanding environments of modern industrial and consumer electronics, providing reliable and stable energy transformation.

Type	B82801B0305A125
Frequency Range	1 MHz - 50 kHz
Connection	SMT
Content	1
Dimensions	(L x W x H) 7.11 x 8.13 x 5.08 mm
Height	5.08mm
Inductivity	3.000µH
Input Impedance	600000Ω
Length	7.11mm
Max. frequency	50kHz
Min. frequency	1MHz
Output impedance	6500000Ω
Primary Voltage	20 A
Width	8.13mm
