TDE Instruments DPM-802-TW-TV Digital Meter Auto-Range AC/DC Measurement

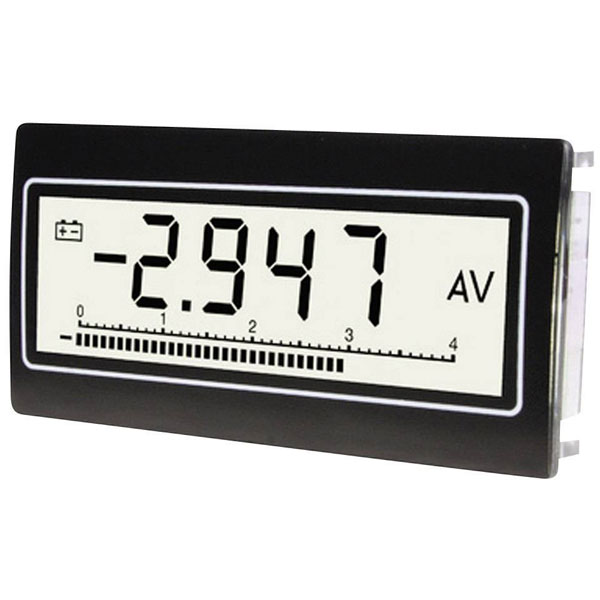

The TDE Instruments DPM-802-TW-TV is a digital rack-mount meter designed for precise measurement and display of voltage and current. It functions as a panel instrument and is commonly used in applications requiring accurate power and voltage monitoring. This ammeter and voltmeter are ideal for integrating into systems for real-time power management and diagnostics.

Type	Digital rack-mount meter
IP Rating	IP65 (on front)/IP20 (on back)
Dim	(L x W x H) 25 x 72 x 36 mm
Display (counts)	3999
Display lighting	white
Display technology	LCD
Factory colour	Black
Frame height	0.36cm
Frame width	72mm
Height	36mm
Interfaces	RS232
Length	25mm
Max. operating voltage	16V DC
Min. operating voltage	5V DC
Recess height	33mm
Recess width	68mm
Weight	60g
Width	72mm
