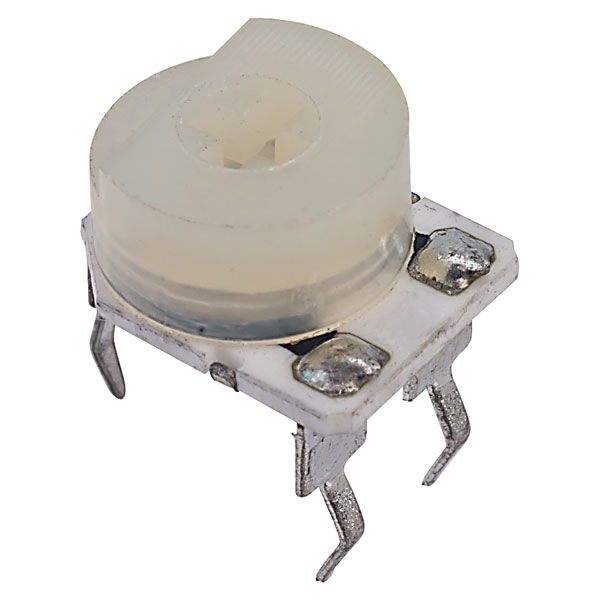

Suntan TSR-3309 Series 9mm Cermet Trimmer Round Single Turn Top Adjust 0.5W

Suntan Brand: Suntan

The TSR-3309 range are 9mm single turn cermet trimmers with top adjustment. Suitable for mounting on a PCB.

  • Available in a choice of values
  • Tolerance 30%
  • Round bodies
  • Solder pins
Description Image Product Buy Pricing (Ex VAT) Resistance Tolerance Power Rating Adjustment Type Number of Turns Pitch Mounting Style
Suntan TSR-3309P-2-102R 1K ±30% 9mm Cermet Trimmer
Suntan TSR-3309P-2-102R 1K ±30% 9mm Cermet Trimmer
Standard range
Order code: 68-1982
MPN: TSR-3309P-2-102R

Order in multiples of 5


1,956 in stock, despatched same dayAdditional quantity lead time 6 months
5+ £0.560
50+ £0.440
250+ £0.290
Price per unit Ex VAT 		1kΩ 30% 0.5W Top 1 5mm Through hole
Suntan TSR-3309P-2-202R 2K ±30% 9mm Cermet Trimmer
Suntan TSR-3309P-2-202R 2K ±30% 9mm Cermet Trimmer
Standard range
Order code: 68-1983
MPN: TSR-3309P-2-202R

Order in multiples of 5


1,600 in stock, despatched same dayAdditional quantity lead time 6 months
5+ £0.450
50+ £0.350
250+ £0.230
Price per unit Ex VAT 		2kΩ 30% 0.5W Top 1 5mm Through hole
Suntan TSR-3309P-2-103R 10K ±30% 9mm Cermet Trimmer
Suntan TSR-3309P-2-103R 10K ±30% 9mm Cermet Trimmer
Standard range
Order code: 68-1985
MPN: TSR-3309P-2-103R

Order in multiples of 5


516 in stock, despatched same dayAdditional quantity lead time 6 months
5+ £0.560
50+ £0.440
250+ £0.290
Price per unit Ex VAT 		10kΩ 30% 0.5W Top 1 5mm Through hole
Suntan TSR-3309P-2-104R 100K ±30% 9mm Cermet Trimmer
Suntan TSR-3309P-2-104R 100K ±30% 9mm Cermet Trimmer
Extended range
Order code: 68-1988
MPN: TSR-3309P-2-104R

1,146 in stock, despatched same dayContact us for additional stock
1+ £0.058
Price per unit Ex VAT 		100kΩ 30% 0.5W Top 1 5mm Through hole
Tolerance30%
Absolute minimum resistance1% max.
Electrical adjustment angle235° nom.
Mechanical adjustment angle260°
Power rating0.5W
Temperature range-30°C to +100°C
Temperature coefficient± 250ppm/°C
