Sunon MF92252V11000UA99 Axial Fan 24V DC 92x92x25mm 87.47m³/h

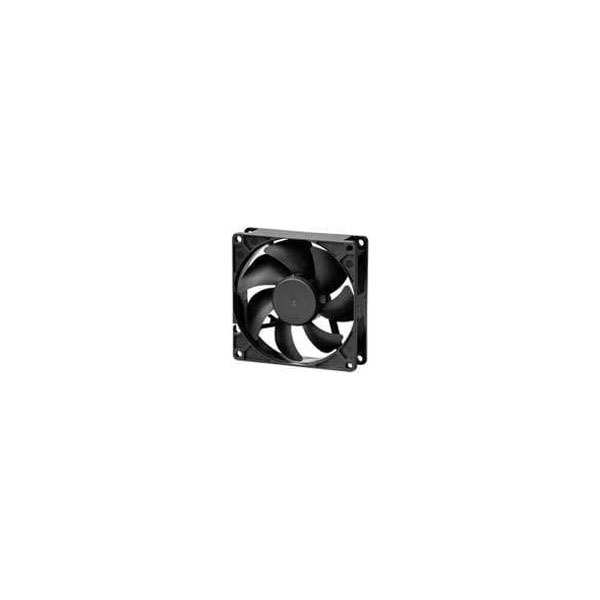

Image Representative of Range

Sunon MF92252V11000UA99 Axial Fan 24V DC 92x92x25mm 87.47m³/h

Sunon
Extended range
Order Code:

07-2446

Brand: Sunon MPN: MF92252V11000UA99
Qty Unit Price (Ex VAT)
1+ £4.61
5+ £4.23
10+ £4.05
25+ £3.78
50+ £3.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 months

The Sunon MF92252V11000UA99 is an axial fan designed for industrial cooling applications. It operates at 24 V DC and delivers an airflow of 87.47 m³/h. With dimensions of 92 x 92 x 25 mm, it is ideal for component cooling and maintaining optimal performance in electronic devices.
Type Axial fan
Air flow rate 87.47m³/h
Cable length 0.30m
Connection Open end cable
Dim (L x W x H) 92 x 92 x 25 mm
Height 25mm
Length 92mm
Max. current consumption 75mA
Max. operating voltage 24V
Max. temperature +70°C
Min. temperature -10°C
Misc Attribute MF92252V11000UA99
Noise emission (max.) 34dB
Nominal voltage 24V DC
Operating voltage 24 V (max)
Power 1.8W
Rotational speed 3000 U/min
Type of bearing Vapo (magnetic)
Width 92mm
