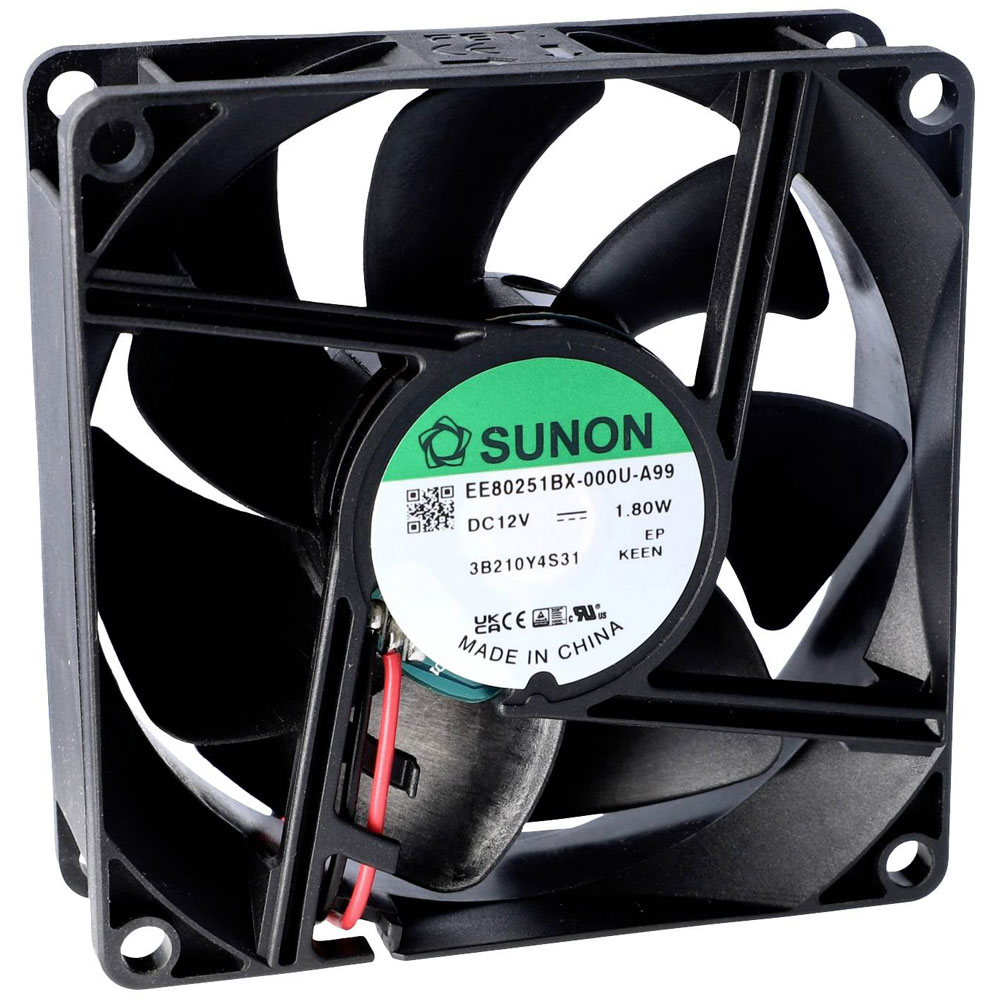

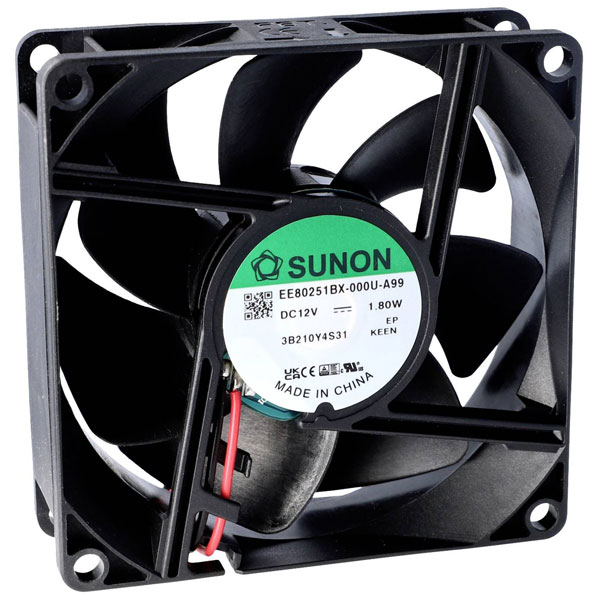

Sunon EF80251B1-1000U-A99 Axial Fan 12V DC 25x80x80mm 69.94 m³/h

Sunon
Extended range
Order Code:

07-2329

Brand: Sunon MPN: EF80251B1-1000U-A99
Qty Unit Price (Ex VAT)
1+ £6.03
5+ £5.56
10+ £5.32
25+ £5.08
50+ £4.96
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 weeks

The Sunon EF80251B1-1000U-A99 axial fan operates at 12 V DC and provides a flow rate of 69.94 m³/h. With dimensions of 25 x 80 x 80 mm, this fan is ideal for component cooling and industrial applications. Designed for efficiency, it ensures reliable thermal management in compact spaces.
Type Axial fan
Air flow rate 69.94m³/h
Connection Braid
Dim (L x W x H) 25 x 80 x 80 mm
Factory colour Black
Height 80mm
Length 25mm
Lifespan 70000h
Material Thermoplastic
Max. current consumption 0.125A
Max. operating voltage 13.8V DC
Max. temperature 70°C
Min. operating voltage 4.5V DC
Min. temperature -10°C
Misc Attribute EF80251B1-1000U-A99
Noise emission (max.) 33dB
Nominal voltage 12V DC
Operating voltage 4.5 - 13.8 V DC
Power 1.5W
Pressure (max.) 44.82 Pa
Rotational speed 3200 U/min
Type of bearing Ball bearing
Weight 101.8g
Width 80mm
