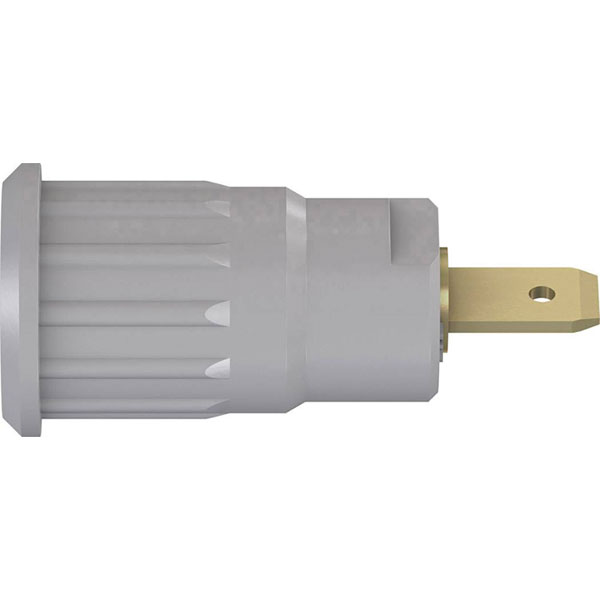

Stäubli 233120-28 SEB4-F Grey Safety jack socket built-in Ø 4 mm 1 pc

MPN: 23.3120-28
Brand: Staubli
EAN-13: 2050005417677
Order Code: 00-0334
Country of Origin: Switzerland

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
5+	£1.05

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Available to back orderBack order, lead time 4 weeks

Product Details

4mm rigid socket in insulated body, with gold-plated contacts and 4.8mm male spade connector. Suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve.

Connector Type	4mm Socket
Plug / Socket	Socket
Mounting Direction	Straight (Panel)
Insulated	Yes
Colour	Grey
Cable Diameter	14.5mm
Connection	Type C CEE 7/16 plug 4.8mm
Contact Plating	Gold plated
Dim	(Ø x L) 14.5 mm x 31.5 mm
Insulation Material	Insulated
Length	31.5mm
Material	gold-plated
Nominal Current	24A
Nominal current - rounded value	24A
Nominal Voltage	Contact-safe 1000 V/ CAT III
Type	Socket, built-in
Width	4mm
