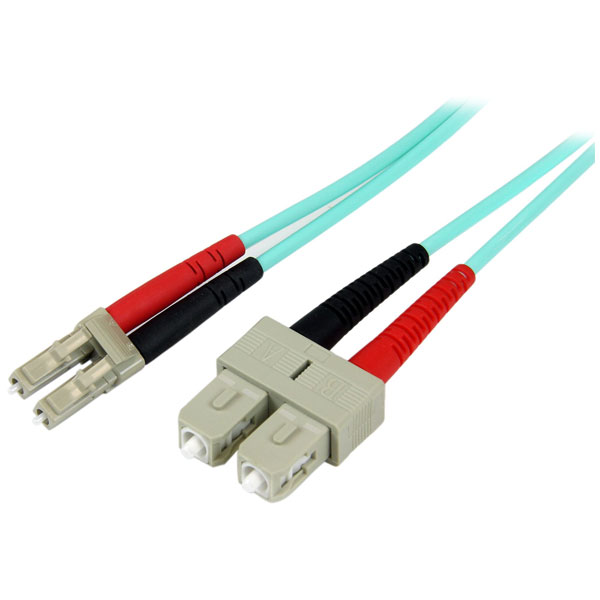

Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 1 Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors, and is composed of 5/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds. Suited for a broad range of environments, A5FBLCSC5 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
The StarTech.com Advantage
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 1 Gbps Ethernet
- Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 5/125µm fiber core/cladding is immune to EMI
- Protective Aramid fiber sheath for improved tensile strength and crush resistance
- LC/SC connectors with UPC polished ceramic ferrules for insertion loss below .3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity
- LSZH jacket emits low-smoke and fumes in case of fire
- TIA/EIA compliant fiber core
- Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/SC multimode cable supports 1/1/4/1 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1BASE-SX, 1GBASE-SR, 4GBASE-SR4, and 1GBASE-SR1
- Backward compatible with OM2
- SPECS: 5m (16.4ft)
- Color: Aqua (OM3)
- LC/SC UPC
- 85nm or 13nm LED/VCSEL
- Modal Bandwidth: ≥2MHz·km at 85nm
- Cable OD: 2.9mm
- Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm)
- Backed for Life
