SSB Electronic 6043 Ecoflex15 Coax Cable 14.60mm 50Ω 90dB UV-stabilised

Image Representative of Range

SSB Electronic 6043 Ecoflex15 Coax Cable 14.60mm 50Ω 90dB UV-stabilised

SSB Electronic
Standard range
Order Code:

13-0039

Brand: SSB Electronic MPN: 6043 EAN-13: 2050000991295
Qty Unit Price (Ex VAT)
1+ £15.11
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
9 in stock, despatched in 4 working days

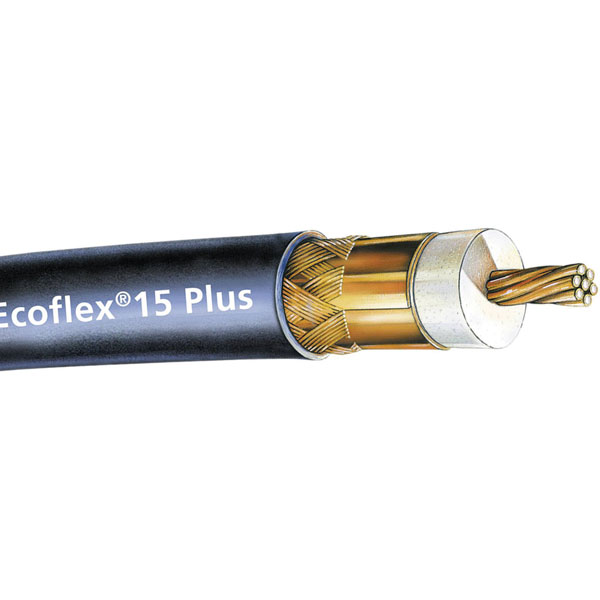

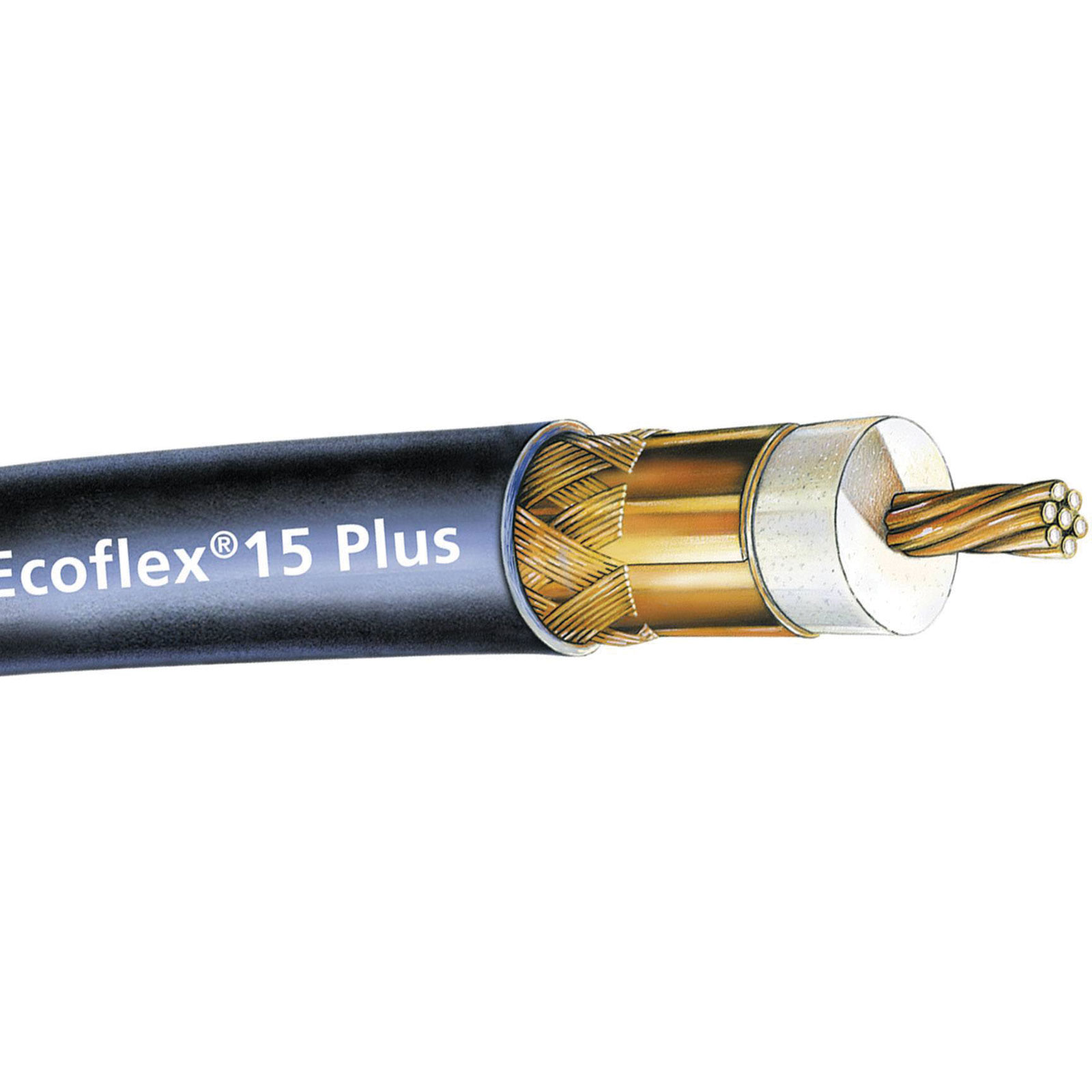

The SSB Electronic Ecoflex 15 Plus 6043 coaxial cable has an outside diameter of 14.60 mm, 50 O impedance, and a 90 dB shielding. It's a black coaxial cable designed for satellite and cable TV systems, providing reliable transmission for digital signals. Sold per metre, this cable is suitable for use in audio and video applications with a nominal voltage max of 1.55 kV.
Type Coax
Attenuation Each 100 m at 20 °C: 100 MHz: 2.67 dB/ 1000 MHz: 9.1 dB/ 2400 MHz: 14.9dB
Bend radius One time 70 mm, 15 repeated deflections 140mm
Bend radius (no. of ODs for fixed installation) 5
Capacity per metre 77pF
Dielectric PE, low-cross Compound
Factory colour Black
Frequency Range - 8GHz
Halogen-free No
Impedance 50Ω
Insulation material PVC
Max. length sold by the metre 102m
Misc Attribute Ecoflex 15 Plus
Nominal voltage (details) Max. 1.55 kV
Packaged No
Range of uses Wireless technology
Shield rating greater than 90dB
Sold per metre Yes
