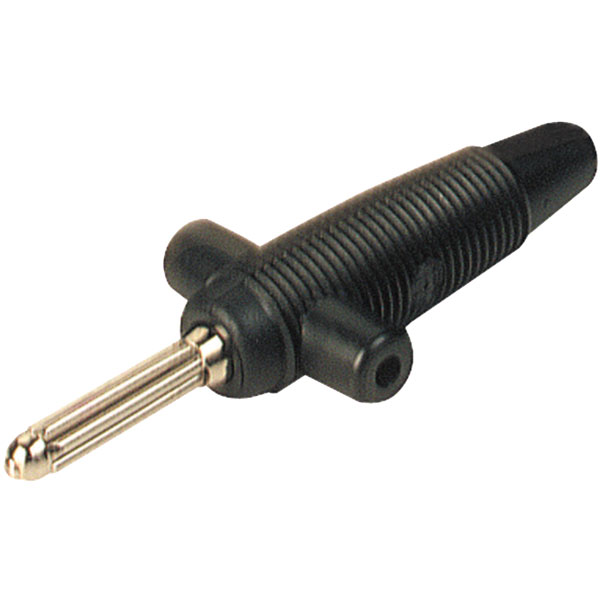

SKS Hirschmann 4mm BUELA 300K Bunch Plugs 30A

SKS Hirschmann Brand: SKS Hirschmann

These multiple-spring 4mm wire bunch plugs from SKS Hirschmann's BUELA 300 K Series are shatterproof and have a flexible insulated sleeve with transverse hole. Lateral supports provide protection against contact when plugged in at right angles. The tapering sleeve end also serves as kinking protection for the lead.

  • Solder connection up to maximum cable cross-section of 2.5mm²
  • Rated voltage 30V AC/60V DC
  • Rated current 30A
  • Contact resistance 10mΩ
  • Available in a range of colours
Description Image Product Buy Pricing (Ex VAT) Colour Plug / Socket Current Rating Mount Type Voltage Rating
SKS Hirschmann 931667100 4mm BUELA 300 K bunch Plug 30A Black
SKS Hirschmann 931667100 4mm BUELA 300 K bunch Plug 30A Black
Standard range
Order code: 50-8642
MPN: 931667100

79 in stock, despatched in 4 working days
3+ £1.47
10+ £1.30
50+ £1.18
Price per unit Ex VAT 		Black Plug 30A Cable 4mm plug 60V
SKS Hirschmann 931667101 4mm BUELA 300 K bunch Plug 30A Red
SKS Hirschmann 931667101 4mm BUELA 300 K bunch Plug 30A Red
Standard range
Order code: 50-8643
MPN: 931667101

114 in stock, despatched in 4 working days
3+ £1.45
10+ £1.29
50+ £1.17
Price per unit Ex VAT 		Red Plug 30A Cable 4mm plug 60V
SKS Hirschmann 931667102 4mm BUELA 300 K bunch Plug 30A Blue
SKS Hirschmann 931667102 4mm BUELA 300 K bunch Plug 30A Blue
Standard range
Order code: 50-8644
MPN: 931667102

84 in stock, despatched in 4 working days
3+ £1.99
10+ £1.85
50+ £1.55
100+ £1.34
Price per unit Ex VAT 		Blue Plug 30A Cable 4mm plug 60V
Order code50-864250-864350-864450-8645
ColourBlackRedBlueYellow
ConnectionSolderSolderSolderSolder
Cross-section2.5mm²2.5mm²2.5mm²2.5mm²
MaterialPVCPVCPVCPVC
ContactNickel-plated brassNickel-plated brassNickel-plated brassNickel-plated brass
Nominal current30A30A30A30A
Nominal voltage60V DC60V DC60V DC60V DC
Pin diameter4mm4mm4mm4mm
ConstructionPlug, cable mountPlug, cable mountPlug, cable mountPlug, cable mount
Temperature range-25 to +70°C-25 to +70°C-25 to +70°C-25 to +70°C
TypeBuela 300 KBuela 300 KBuela 300 KBuela 300 K
Manufacturer part no.931667100931667101931667102931667103
