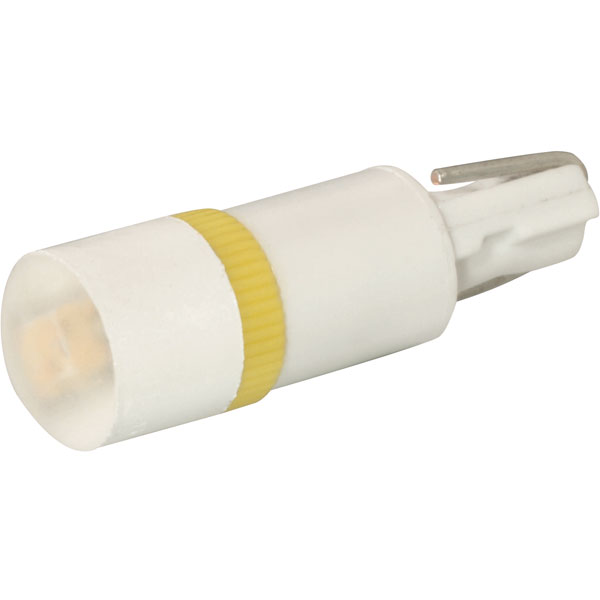

Signal Construct Multi-Look LED Recessed Panel Indicators 5.6mm AC/DC W2 x 4.6d

Signal Construct Brand: Signal Construct

A selection of 5.6mm panel indicators with bright LED indicators that have a bipolar design that enables them to work with both AC and DC voltages. The design of the reflector and diverging lens gives a wide viewing angle, similar to that of a multi-chip LED but without the expense.

  • Operating voltage 12 to 14V AC/DC
  • W2x4.6 base
  • Push-fit mounting
  • No UV or IR radiance
  • 5.6mm Body for mounting in a ø5.8mm cut out
  • Lifetime 50,000 hours
Description Image Product Buy Pricing (Ex VAT) Lamp/Lens Colour Brightness (mcd) Current View Angle Type Bezel Size Voltage
Signal Construct MWTW4602 5.6mm 12-14VAC/DC Red LED Bipolar W2x4.6d
Signal Construct MWTW4602 5.6mm 12-14VAC/DC Red LED Bipolar W2x4.6d
Standard range
Order code: 50-3017
MPN: MWTW4602

Despatched within 4 working days - 14 in stock
2+ £4.00
Price per unit Ex VAT 		Red 400mcd 14.5mA 160° LED indicator light Recessed 5.6mm 12V
Signal Construct MWTW4672 5.6mm 12-14VAC/DC Green LED Bipolar W2x4.6d
Signal Construct MWTW4672 5.6mm 12-14VAC/DC Green LED Bipolar W2x4.6d
Standard range
Order code: 50-3021
MPN: MWTW4672

Despatched within 4 working days - 44 in stock
1+ £4.49
Price per unit Ex VAT 		Green 650mcd 13mA 80° LED indicator light Recessed 5.6mm 12V
ColourWavelengthLum. int. (mcd)IFViewingOperating
(nm)@ IF (20mA)(mA)angletemperature
Red62440014.5160°-40°C to +85°C
Yellow58940014.5160°-40°C to +85°C
Ultra green54565013.080°-40°C to +85°C
Blue46020013.080°-40°C to +85°C
Whitex = 0.32 *50013.080°-40°C to +85°C
y = 0.33 *
* Chromaticity coordinates
